Specifications, Requirements, and Setup

Package Contents

The Tenstorrent TT-QuietBox Liquid-Cooled Desktop Workstation system package includes:

  • Tenstorrent TT-QuietBox Liquid-Cooled Desktop Workstation

  • C13 Power Cable, 1.8m/6ft.

  • 2x QSFP-DD 400GbE Cable, 0.6m/2ft.

System Specifications

Specification

TT-QuietBox (TW-04001)

CPU

AMD EPYC™ 8124P
(16C/32T, up to 3GHz, 125W, AMD)

Motherboard

TYAN Tomcat HX S8040 MB (S8040GM2NE-2T)

Memory

512GB (8x64GB)
DDR5-4800 ECC RDIMM
(0 Slots Free)

Storage

3.8TB U.2 NVMe PCIe 4.0 x4

Tensix Processors

4x Tenstorrent Wormhole™ n300 Tensix Processor

Cables

2x Warp 100 Interconnect
2x QSFP-DD 400GbE

Connectivity

2x RJ45 10GBase-T via Intel® X710

2x RJ45 1GBase-T via Intel® I210
2x USB 3.1 Gen 1 (5GBps) Type-A (2x Front, 2x Rear)
1x COM
1x VGA
1x IPMI

Power Supply

1650W 80 PLUS Platinum

Operating System

None

Operating System Requirements

The TT-QuietBox system ships without an operating system installed. We recommend installing Ubuntu 20.04 (Focal Fossa) to properly use the Tenstorrent n300 Tensix Processors.

QSFP-DD Connections and System Topology

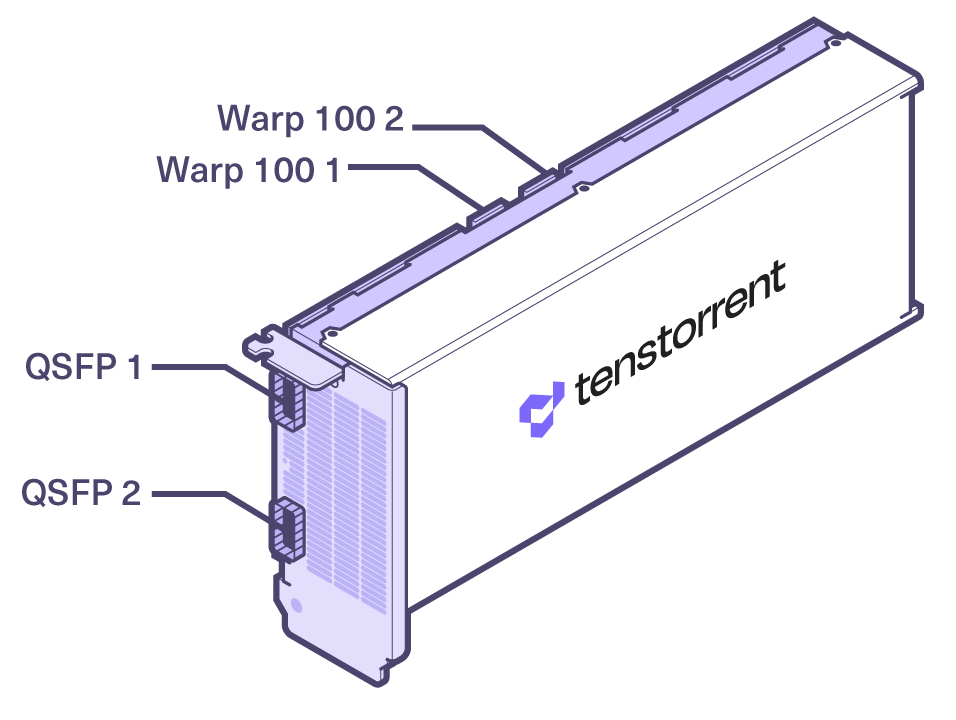

The Tenstorrent TT-QuietBox includes four Wormhole™ n300 Tensix Processors and internal Warp 100 bridges and external QSFP-DD cables that enable the Tensix Processor mesh.

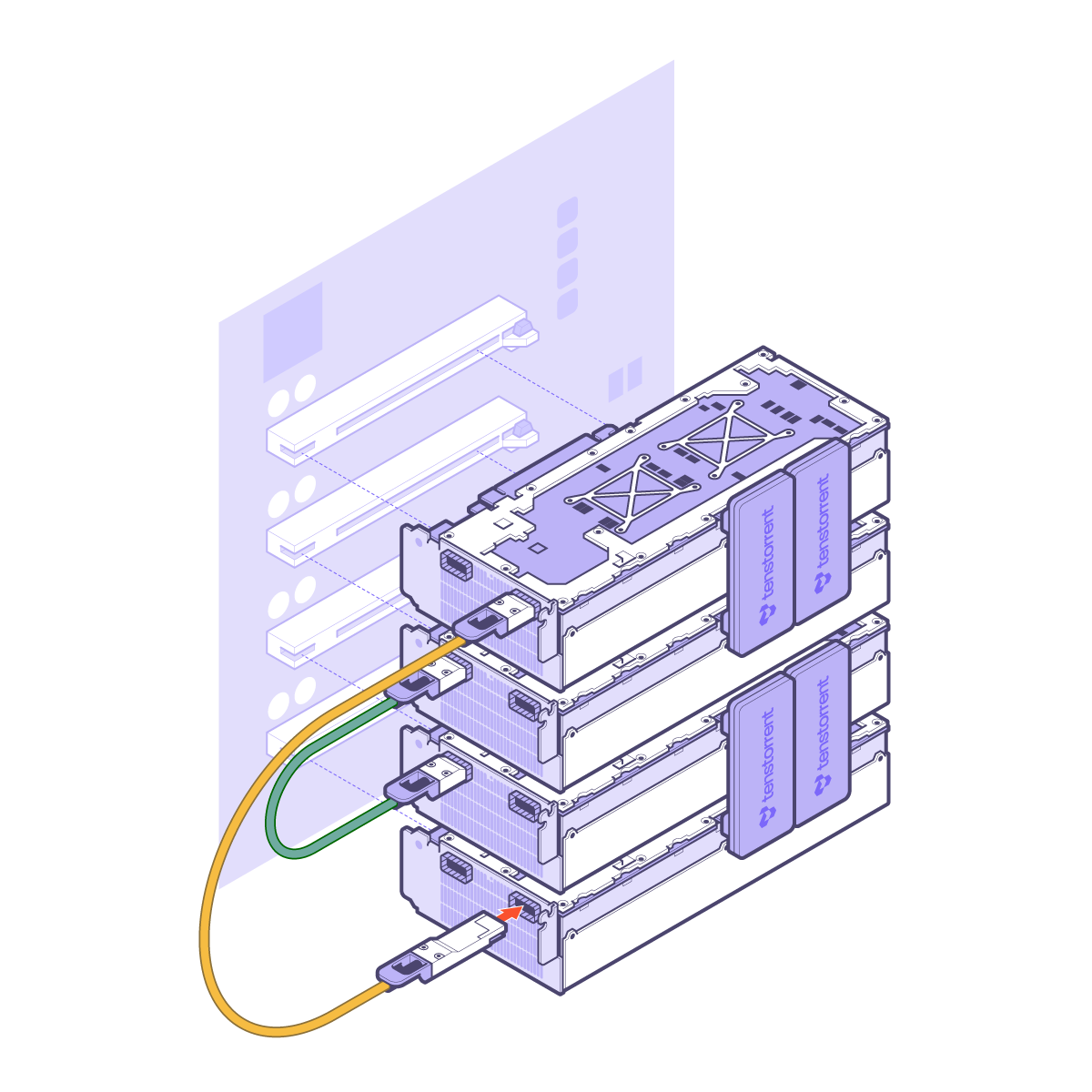

The TT-QuietBox ships with the Warp 100 bridges connected, but the two QSFP-DD cables will need to be connected. This diagram displays the system topology and how the cards are enumerated, along with where the Warp 100 bridges are connected and where the included QSFP-DD cables need to be connected.

One QSFP-DD cable will need to be connected to Port 1 on the cards in Slots 1 and 4.

One QSFP-DD cable will need to be connected to Port 2 on the cards in Slots 3 and 2.

Environment Specifications

The TT-QuietBox Liquid-Cooled Desktop Workstation is designed to operate at up to 35°C/95°F external ambient temperatures.
