Bootloader Architecture

The CMFW and DMFW both utilize MCUBoot as a bootloader. MCUBoot is an open-source bootloader commonly used in Zephyr-based systems. The CMFW boots in ram-load mode, while the DMFW boots from internal flash with a dual-image strategy. The bootloader implementations are described in detail below.

DMFW Bootloader

The DMFW bootloader is a standard MCUBoot implementation, configured to support dual-image booting. The bootloader utilized the “swap using offset” update strategy, which is documented in the MCUBoot swap documentation. The primary image partition is stored in the internal STM32 flash, while the secondary image partition is stored in an external SPI flash chip. This maximizes the available space for the DMFW firmware image.

The DMFW flash partitions are defined as follows:

Partition Name	Flash Device	Offset	Size
MCUBoot	Internal Flash	0x00000000	64KiB
DMFW Primary Image	Internal Flash	0x00010000	448KiB
DMFW Update Image	SPI Flash	0x0022d000	452KiB

For reference, see the DMFW bootloader devicetree definition.

DMFW Boot Process

After the STM32 comes out of reset, MCUBoot will execute. MCUBoot checks the image header in the primary partition to determine if a valid image is present, and validates that the image SHA sum matches the expected value. If the image is valid, MCUBoot will boot the image. Otherwise the boot process will fail.

DMFW Update Process

Firmware images are written to the SPI flash, as the internal STM32 flash is not directly writable by tt-flash. The DMFW image within the firmware update package is defined with a MCUBoot trailer that indicates it is a valid image, but not yet confirmed. After tt-flash completes execution and instructs the STM32 to reboot the bootloader will detect the new image and perform a swap operation, copying the new image from SPI flash to internal STM32 flash. Once the new image is successfully copied, the bootloader will boot the new image. The DMFW firmware is responsible for confirming the new image after boot, by calling the appropriate MCUBoot API. If the image is not confirmed, the bootloader will revert to the previous image on the next reboot.

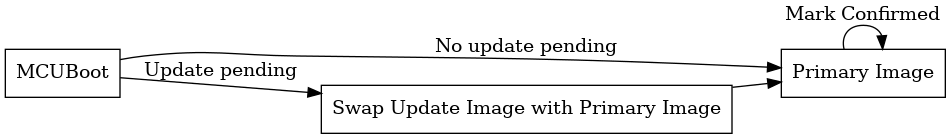

DMFW Update Process

CMFW Bootloader

The CMFW bootloader utilizes MCUBoot in the “ram load with revert” mode, which is documented in the MCUBoot ramload documentation. In this mode, MCUBoot loads the firmware image from flash to a predefined RAM location, and then jumps to the RAM location to execute the image. MCUBoot selects the image with the highest valid version number as the next image to boot. For this reason, the CMFW boot scheme is defined with a “mission mode” firmware image which will be updated in place, and a “recovery mode” firmware image which is not updated during normal operation. If the mission mode image fails to boot, MCUBoot will revert to the recovery mode image on the next reboot.

The CMFW flash partitions are defined as follows:

Partition Name	Flash Device	Offset	Size
MCUBoot	SPI Flash	0x00014000	128KiB
CMFW Recovery Image	SPI Flash	0x00034000	512KiB
MCUBoot Fallback Image	SPI Flash	0x000B4000	128KiB
CMFW Mission Image	SPI Flash	0x0029E000	512KiB

For reference, see the CMFW bootloader devicetree definition.

CMFW Boot Process

The Blackhole ASIC SMC includes a ROM bootloader that executes on reset. The ROM bootloader is responsible for loading the firmware image from SPI flash for execution. It uses the tt-boot-fs file descriptor table stored at the start of SPI flash, and will perform the following steps on each entry:

1. Check that the entry crc matches the expected value

2. If so, load the entry to the address in ARC CSM or ICCM specified in the entry header

3. If the entry is marked as executable, jump to the entry load address

4. If execution returns, continue the above sequence with the next entry

If step 1 fails for any entry, the ROM bootloader will jump to the fallback descriptor entry at 0x4000. This offset is outside the tt-boot-fs table, and is reserved for the fallback image. The fallback image will then be loaded and executed.

The CMFW flash partitions are defined such that MCUBoot will execute as the first entry in the tt-boot-fs table, and will also execute as the recovery image. This way a damaged tt-boot-fs table will not prevent boot.

Once MCUBoot is executing, it will select the mission mode image as the next image to boot, as it always has a higher version number than the recovery image. MCUBoot will only launch the recovery image if the mission mode image header is invalid, or if the mission mode image fails to boot and MCUBoot reverts to the recovery image.

CMFW Update Process

Firmware images are written to the SPI flash by tt-flash. The mission mode image within the firmware update package is defined with a MCUBoot trailer that indicates it is a valid image, but not yet confirmed. After tt-flash completes execution and instructs the Blackhole ASIC to reboot, the ROM bootloader will execute MCUBoot, which will load and boot the new mission mode image. The CMFW firmware is responsible for confirming the new image after boot, by calling the appropriate MCUBoot API. If the image is not confirmed, MCUBoot will erase the invalid image and select the recovery image on the next reboot.

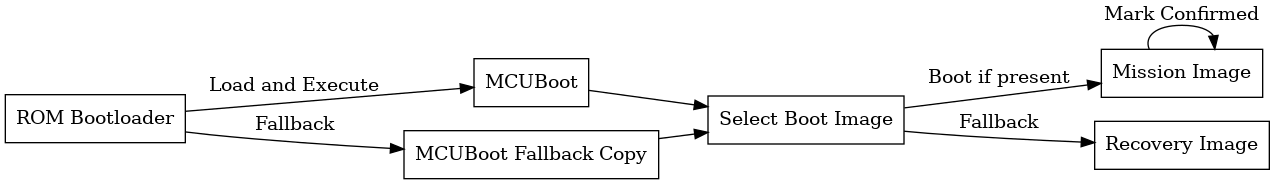

CMFW Boot Process

Host Flash Access

The host can access external SPI flash via ARC message commands, which are handled by the CMFW. The CMFW exposes commands to read and write flash, where the write command will automatically handle erasing the necessary flash sectors before writing. The host can use these commands to read or write any region of the external SPI flash, including the bootloader and firmware image partitions.

The tt-flash utility uses pyluwen to write firmware images to SPI flash, which implements these ARC message commands. The relevant code for tt-flash can be found in the tt-flash repository, and the pyluwen ARC message commands can be found in the pyluwen repository.
