clock_control_tt_bh.c File Reference

#include <zephyr/kernel.h>
#include <zephyr/device.h>
#include <zephyr/drivers/clock_control.h>
#include <zephyr/drivers/clock_control/clock_control_tt_bh.h>
#include <zephyr/sys/sys_io.h>
#include <zephyr/sys_clock.h>
#include <zephyr/sys/util.h>
#include <stdint.h>
#include <zephyr/logging/log.h>

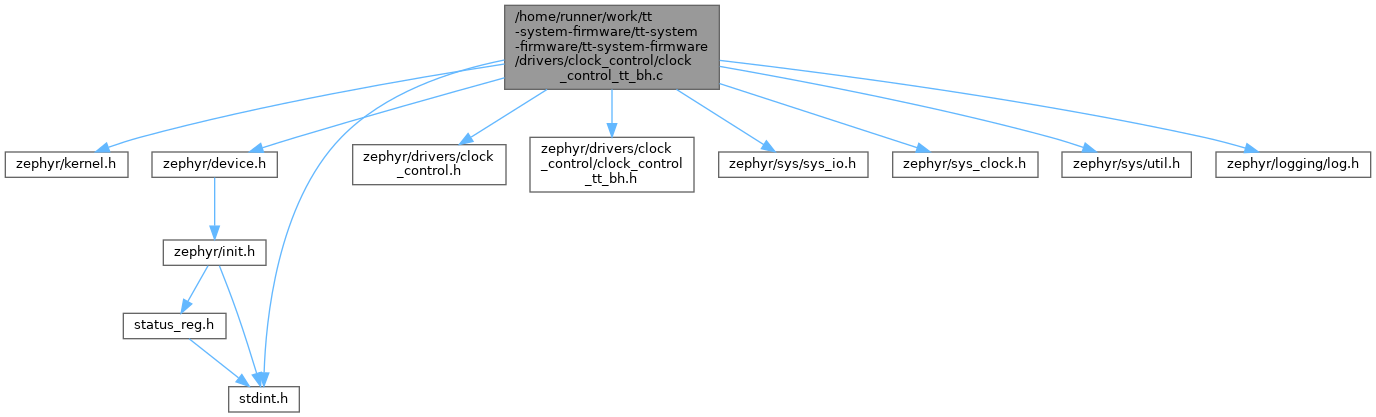

Include dependency graph for clock_control_tt_bh.c:

Data Structures
struct	tt_bh_pll_cntl_wrapper_lock_fields
union	tt_bh_pll_cntl_wrapper_lock_reg
struct	tt_bh_pll_cntl_0_fields
union	tt_bh_pll_cntl_0_reg
struct	tt_bh_pll_cntl_1_fields
union	tt_bh_pll_cntl_1_reg
struct	tt_bh_pll_cntl_2_fields
union	tt_bh_pll_cntl_2_reg
struct	tt_bh_pll_cntl_3_fields
union	tt_bh_pll_cntl_3_reg
struct	tt_bh_pll_cntl_5_fields
union	tt_bh_pll_cntl_5_reg
struct	tt_bh_pll_use_postdiv_fields
union	tt_bh_pll_use_postdiv_reg
struct	tt_bh_pll_settings
struct	clock_control_tt_bh_config
struct	clock_control_tt_bh_data

Macros
#define	DT_DRV_COMPAT   tenstorrent_bh_clock_control
#define	PLL_LOCK_TIMEOUT_MS   400
#define	PLL_CNTL_0_OFFSET   0x00
#define	PLL_CNTL_1_OFFSET   0x04
#define	PLL_CNTL_2_OFFSET   0x08
#define	PLL_CNTL_3_OFFSET   0x0C
#define	PLL_CNTL_4_OFFSET   0x10
#define	PLL_CNTL_5_OFFSET   0x14
#define	PLL_CNTL_6_OFFSET   0x18
#define	PLL_USE_POSTDIV_OFFSET   0x1C
#define	PLL_REFCLK_SEL_OFFSET   0x20
#define	PLL_USE_FINE_DIVIDER_1_OFFSET   0x24
#define	PLL_USE_FINE_DIVIDER_2_OFFSET   0x28
#define	FINE_DUTYC_ADJUST_OFFSET   0x2C
#define	CLK_COUNTER_EN_OFFSET   0x30
#define	CLK_COUNTER_0_OFFSET   0x34
#define	CLK_COUNTER_1_OFFSET   0x38
#define	CLK_COUNTER_2_OFFSET   0x3C
#define	CLK_COUNTER_3_OFFSET   0x40
#define	CLK_COUNTER_4_OFFSET   0x44
#define	CLK_COUNTER_5_OFFSET   0x48
#define	CLK_COUNTER_6_OFFSET   0x4C
#define	CLK_COUNTER_7_OFFSET   0x50
#define	VCO_MIN_FREQ   1600
#define	VCO_MAX_FREQ   5000
#define	CLK_COUNTER_REFCLK_PERIOD   1000
#define	PLL_CNTL_WRAPPER_PLL_LOCK_REG_ADDR   0x80020040
#define	PLL_CNTL_WRAPPER_REFCLK_PERIOD_REG_ADDR   0x8002002C
#define	CLOCK_CONTROL_TT_BH_INIT(_inst)

Functions
	LOG_MODULE_REGISTER (clock_control_tt_bh)
static uint32_t	clock_control_tt_bh_read_reg (const struct clock_control_tt_bh_config *config, uint32_t offset)
static void	clock_control_tt_bh_write_reg (const struct clock_control_tt_bh_config *config, uint32_t offset, uint32_t val)
static void	clock_control_enable_clk_counters (const struct clock_control_tt_bh_config *config)
static void	clock_control_tt_bh_config_vco (const struct clock_control_tt_bh_config *config, const struct tt_bh_pll_settings *settings)
static void	clock_control_tt_bh_config_ext_postdivs (const struct clock_control_tt_bh_config *config, const struct tt_bh_pll_settings *settings)
static int	clock_control_tt_bh_wait_lock (uint8_t inst)
static uint32_t	clock_control_tt_bh_get_ext_postdiv (uint8_t postdiv_index, union tt_bh_pll_cntl_5_reg pll_cntl_5, union tt_bh_pll_use_postdiv_reg use_postdiv)
static uint32_t	clock_control_tt_bh_calculate_fbdiv (uint32_t refclk_rate, uint32_t target_freq_mhz, union tt_bh_pll_cntl_1_reg pll_cntl_1, union tt_bh_pll_cntl_5_reg pll_cntl_5, union tt_bh_pll_use_postdiv_reg use_postdiv, uint8_t postdiv_index)
static uint32_t	clock_control_tt_bh_get_freq (const struct clock_control_tt_bh_config *config, uint8_t postdiv_index)
static void	clock_control_tt_bh_update (const struct clock_control_tt_bh_config *config, struct clock_control_tt_bh_data *data, const struct tt_bh_pll_settings *settings)
static int	clock_control_tt_bh_enable (const struct device *dev, clock_control_subsys_t sys, uint8_t enable)
static int	clock_control_tt_bh_on (const struct device *dev, clock_control_subsys_t sys)
static int	clock_control_tt_bh_off (const struct device *dev, clock_control_subsys_t sys)
static int	clock_control_tt_bh_async_on (const struct device *dev, clock_control_subsys_t sys, clock_control_cb_t cb, void *user_data)
static int	clock_control_tt_bh_get_rate (const struct device *dev, clock_control_subsys_t sys, uint32_t *rate)
static enum clock_control_status	clock_control_tt_bh_get_status (const struct device *dev, clock_control_subsys_t sys)
static int	clock_control_tt_bh_set_rate (const struct device *dev, clock_control_subsys_t sys, clock_control_subsys_rate_t rate)
static int	clock_control_tt_bh_configure (const struct device *dev, clock_control_subsys_t sys, void *option)
static int	clock_control_tt_bh_init (const struct device *dev)

Variables
static const struct clock_control_driver_api	clock_control_tt_bh_api

Macro Definition Documentation

CLK_COUNTER_0_OFFSET

#define CLK_COUNTER_0_OFFSET   0x34

CLK_COUNTER_1_OFFSET

#define CLK_COUNTER_1_OFFSET   0x38

CLK_COUNTER_2_OFFSET

#define CLK_COUNTER_2_OFFSET   0x3C

CLK_COUNTER_3_OFFSET

#define CLK_COUNTER_3_OFFSET   0x40

CLK_COUNTER_4_OFFSET

#define CLK_COUNTER_4_OFFSET   0x44

CLK_COUNTER_5_OFFSET

#define CLK_COUNTER_5_OFFSET   0x48

CLK_COUNTER_6_OFFSET

#define CLK_COUNTER_6_OFFSET   0x4C

CLK_COUNTER_7_OFFSET

#define CLK_COUNTER_7_OFFSET   0x50

CLK_COUNTER_EN_OFFSET

#define CLK_COUNTER_EN_OFFSET   0x30

CLK_COUNTER_REFCLK_PERIOD

#define CLK_COUNTER_REFCLK_PERIOD   1000

CLOCK_CONTROL_TT_BH_INIT

#define CLOCK_CONTROL_TT_BH_INIT

(

_inst

)

Value:

        static struct clock_control_tt_bh_data clock_control_tt_bh_data_##_inst;                   \
                                                                                                   \
        static const struct clock_control_tt_bh_config clock_control_tt_bh_config_##_inst = {      \
                .inst = _inst,                                                                     \
                .refclk_rate = DT_PROP(DT_INST_CLOCKS_CTLR(_inst), clock_frequency),               \
                .base = DT_REG_ADDR(DT_DRV_INST(_inst)),                                           \
                .size = DT_REG_SIZE(DT_DRV_INST(_inst)),                                           \
                .init_settings = {                                                                 \
                        .pll_cntl_1 = {.f.refdiv = DT_INST_PROP(_inst, refdiv),                    \
                                       .f.postdiv = DT_INST_PROP(_inst, postdiv),                  \
                                       .f.fbdiv = DT_INST_PROP(_inst, fbdiv)},                     \
                        .pll_cntl_2 = {.f.ctrl_bus1 = DT_INST_PROP(_inst, ctrl_bus1)},             \
                        .pll_cntl_3 = {.f.ctrl_bus5 = DT_INST_PROP(_inst, ctrl_bus5)},             \
                        .pll_cntl_5 = {.f.postdiv0 = DT_INST_PROP_BY_IDX(_inst, post_divs, 0),     \
                                       .f.postdiv1 = DT_INST_PROP_BY_IDX(_inst, post_divs, 1),     \
                                       .f.postdiv2 = DT_INST_PROP_BY_IDX(_inst, post_divs, 2),     \
                                       .f.postdiv3 = DT_INST_PROP_BY_IDX(_inst, post_divs, 3)},    \
                        .use_postdiv = {.f.pll_use_postdiv0 =                                      \
                                                DT_INST_PROP_BY_IDX(_inst, use_post_divs, 0),      \
                                        .f.pll_use_postdiv1 =                                      \
                                                DT_INST_PROP_BY_IDX(_inst, use_post_divs, 1),      \
                                        .f.pll_use_postdiv2 =                                      \
                                                DT_INST_PROP_BY_IDX(_inst, use_post_divs, 2),      \
                                        .f.pll_use_postdiv3 =                                      \
                                                DT_INST_PROP_BY_IDX(_inst, use_post_divs, 3)}}};   \
                                                                                                   \
        DEVICE_DT_INST_DEFINE(                                                                     \
                _inst, clock_control_tt_bh_init, NULL, &clock_control_tt_bh_data_##_inst,          \
                &clock_control_tt_bh_config_##_inst, POST_KERNEL, 3, &clock_control_tt_bh_api);

DT_DRV_COMPAT

#define DT_DRV_COMPAT   tenstorrent_bh_clock_control

FINE_DUTYC_ADJUST_OFFSET

#define FINE_DUTYC_ADJUST_OFFSET   0x2C

PLL_CNTL_0_OFFSET

#define PLL_CNTL_0_OFFSET   0x00

PLL_CNTL_1_OFFSET

#define PLL_CNTL_1_OFFSET   0x04

PLL_CNTL_2_OFFSET

#define PLL_CNTL_2_OFFSET   0x08

PLL_CNTL_3_OFFSET

#define PLL_CNTL_3_OFFSET   0x0C

PLL_CNTL_4_OFFSET

#define PLL_CNTL_4_OFFSET   0x10

PLL_CNTL_5_OFFSET

#define PLL_CNTL_5_OFFSET   0x14

PLL_CNTL_6_OFFSET

#define PLL_CNTL_6_OFFSET   0x18

PLL_CNTL_WRAPPER_PLL_LOCK_REG_ADDR

#define PLL_CNTL_WRAPPER_PLL_LOCK_REG_ADDR   0x80020040

PLL_CNTL_WRAPPER_REFCLK_PERIOD_REG_ADDR

#define PLL_CNTL_WRAPPER_REFCLK_PERIOD_REG_ADDR   0x8002002C

PLL_LOCK_TIMEOUT_MS

#define PLL_LOCK_TIMEOUT_MS   400

PLL_REFCLK_SEL_OFFSET

#define PLL_REFCLK_SEL_OFFSET   0x20

PLL_USE_FINE_DIVIDER_1_OFFSET

#define PLL_USE_FINE_DIVIDER_1_OFFSET   0x24

PLL_USE_FINE_DIVIDER_2_OFFSET

#define PLL_USE_FINE_DIVIDER_2_OFFSET   0x28

PLL_USE_POSTDIV_OFFSET

#define PLL_USE_POSTDIV_OFFSET   0x1C

VCO_MAX_FREQ

#define VCO_MAX_FREQ   5000

VCO_MIN_FREQ

#define VCO_MIN_FREQ   1600

Function Documentation

clock_control_enable_clk_counters()

void clock_control_enable_clk_counters ( const struct clock_control_tt_bh_config * config )

static

clock_control_tt_bh_async_on()

int clock_control_tt_bh_async_on ( const struct device * dev, clock_control_subsys_t sys, clock_control_cb_t cb, void * user_data )

static

clock_control_tt_bh_calculate_fbdiv()

uint32_t clock_control_tt_bh_calculate_fbdiv ( uint32_t refclk_rate, uint32_t target_freq_mhz, union tt_bh_pll_cntl_1_reg pll_cntl_1, union tt_bh_pll_cntl_5_reg pll_cntl_5, union tt_bh_pll_use_postdiv_reg use_postdiv, uint8_t postdiv_index )

static

clock_control_tt_bh_config_ext_postdivs()

void clock_control_tt_bh_config_ext_postdivs ( const struct clock_control_tt_bh_config * config, const struct tt_bh_pll_settings * settings )

static

clock_control_tt_bh_config_vco()

void clock_control_tt_bh_config_vco ( const struct clock_control_tt_bh_config * config, const struct tt_bh_pll_settings * settings )

static

clock_control_tt_bh_configure()

int clock_control_tt_bh_configure ( const struct device * dev, clock_control_subsys_t sys, void * option )

static

clock_control_tt_bh_enable()

int clock_control_tt_bh_enable ( const struct device * dev, clock_control_subsys_t sys, uint8_t enable )

static

clock_control_tt_bh_get_ext_postdiv()

uint32_t clock_control_tt_bh_get_ext_postdiv ( uint8_t postdiv_index, union tt_bh_pll_cntl_5_reg pll_cntl_5, union tt_bh_pll_use_postdiv_reg use_postdiv )

static

clock_control_tt_bh_get_freq()

uint32_t clock_control_tt_bh_get_freq ( const struct clock_control_tt_bh_config * config, uint8_t postdiv_index )

static

clock_control_tt_bh_get_rate()

int clock_control_tt_bh_get_rate ( const struct device * dev, clock_control_subsys_t sys, uint32_t * rate )

static

clock_control_tt_bh_get_status()

enum clock_control_status clock_control_tt_bh_get_status ( const struct device * dev, clock_control_subsys_t sys )

static

clock_control_tt_bh_init()

int clock_control_tt_bh_init ( const struct device * dev )

static

clock_control_tt_bh_off()

int clock_control_tt_bh_off ( const struct device * dev, clock_control_subsys_t sys )

static

clock_control_tt_bh_on()

int clock_control_tt_bh_on ( const struct device * dev, clock_control_subsys_t sys )

static

clock_control_tt_bh_read_reg()

uint32_t clock_control_tt_bh_read_reg ( const struct clock_control_tt_bh_config * config, uint32_t offset )

static

clock_control_tt_bh_set_rate()

int clock_control_tt_bh_set_rate ( const struct device * dev, clock_control_subsys_t sys, clock_control_subsys_rate_t rate )

static

clock_control_tt_bh_update()

void clock_control_tt_bh_update ( const struct clock_control_tt_bh_config * config, struct clock_control_tt_bh_data * data, const struct tt_bh_pll_settings * settings )

static

clock_control_tt_bh_wait_lock()

int clock_control_tt_bh_wait_lock ( uint8_t inst )

static

clock_control_tt_bh_write_reg()

void clock_control_tt_bh_write_reg ( const struct clock_control_tt_bh_config * config, uint32_t offset, uint32_t val )

static

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER

(

clock_control_tt_bh

)

Variable Documentation

clock_control_tt_bh_api

const struct clock_control_driver_api clock_control_tt_bh_api

static

Initial value:

= {
        .on = clock_control_tt_bh_on,
        .off = clock_control_tt_bh_off,
        .async_on = clock_control_tt_bh_async_on,
        .get_rate = clock_control_tt_bh_get_rate,
        .get_status = clock_control_tt_bh_get_status,
        .set_rate = clock_control_tt_bh_set_rate,
        .configure = clock_control_tt_bh_configure}
