smbus_target.c File Reference

#include <zephyr/sys/util.h>
#include <zephyr/kernel.h>
#include <errno.h>
#include <zephyr/drivers/i2c.h>
#include <zephyr/sys/crc.h>
#include <zephyr/sys/atomic.h>
#include <tenstorrent/smbus_target.h>
#include <zephyr/logging/log.h>

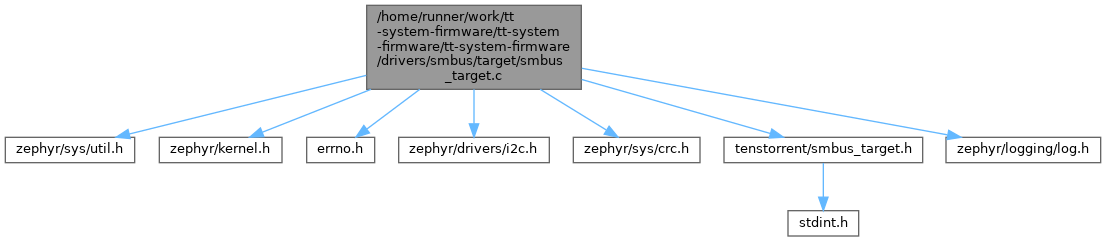

Include dependency graph for smbus_target.c:

Data Structures
struct	smbus_target_data
struct	smbus_target_config

Macros
#define	DT_DRV_COMPAT   zephyr_smbus_target
#define	LOG_LEVEL   CONFIG_I2C_LOG_LEVEL
#define	SMBUS_LOG_ERR_RATELIMIT(data, fmt, ...)
#define	SMBUS_TARGET_INIT(inst)

Enumerations
enum	smbus_state {   SMBUS_STATE_IDLE ,   SMBUS_STATE_CMD ,   SMBUS_STATE_RCV_DATA ,   SMBUS_STATE_RCV_PEC ,   SMBUS_STATE_SEND_DATA ,   SMBUS_STATE_SEND_PEC ,   SMBUS_STATE_WAIT_IDLE }

Functions
	LOG_MODULE_REGISTER (i2c_target)
static const struct smbus_cmd_def *	get_cmd_def (struct smbus_target_data *smbus_data, uint8_t cmd)
static uint8_t	pec_crc_8 (uint8_t crc, uint8_t data)
static int32_t	smbus_target_register (const struct device *dev)
static int32_t	smbus_target_unregister (const struct device *dev)
static int	smbus_write_handler (struct i2c_target_config *config, uint8_t val)
static int32_t	smbus_read_handler (struct i2c_target_config *config, uint8_t *val)
uint32_t	smbus_target_get_error_count (const struct device *dev)
	Get total number of SMBUS target errors.
static void	reset_state_machine (struct smbus_target_data *smbus_data)
static int32_t	smbus_stop_handler (struct i2c_target_config *config)
static int32_t	smbus_write_requested (struct i2c_target_config *config)
static	DEVICE_API (i2c_target, api_funcs)
static int32_t	smbus_target_init (const struct device *dev)
int32_t	smbus_target_register_cmd (const struct device *dev, uint8_t cmd_id, const struct smbus_cmd_def *smbus_cmd)
	Register the given command to the SMBUS target implementation.
int32_t	smbus_target_register_cmds (const struct device *dev, const struct smbus_cmd_registration *cmds, size_t num_cmds)
	Register a table of commands to the SMBUS target implementation.

Variables
const struct i2c_target_callbacks	smbus_target_cb_impl

Macro Definition Documentation

DT_DRV_COMPAT

#define DT_DRV_COMPAT   zephyr_smbus_target

LOG_LEVEL

#define LOG_LEVEL   CONFIG_I2C_LOG_LEVEL

SMBUS_LOG_ERR_RATELIMIT

#define SMBUS_LOG_ERR_RATELIMIT	(		data,
			fmt,
			... )

Value:

        do {                                                                                       \
                atomic_inc(&(data)->error_count);                                                  \
                LOG_ERR_RATELIMIT(fmt, ##__VA_ARGS__);                                             \
        } while (0)

SMBUS_TARGET_INIT

#define SMBUS_TARGET_INIT

(

inst

)

Value:

        static struct smbus_target_data smbus_target_##inst##_dev_data = {0};                      \
        static const struct smbus_target_config smbus_target_##inst##_cfg = {                      \
                .bus = I2C_DT_SPEC_INST_GET(inst),                                                 \
        };                                                                                         \
                                                                                                   \
        DEVICE_DT_INST_DEFINE(inst, &smbus_target_init, NULL, &smbus_target_##inst##_dev_data,     \
                              &smbus_target_##inst##_cfg, POST_KERNEL,                             \
                              CONFIG_I2C_TARGET_INIT_PRIORITY, &api_funcs);

Enumeration Type Documentation

smbus_state

enum smbus_state

Enumerator
SMBUS_STATE_IDLE
SMBUS_STATE_CMD
SMBUS_STATE_RCV_DATA
SMBUS_STATE_RCV_PEC
SMBUS_STATE_SEND_DATA
SMBUS_STATE_SEND_PEC
SMBUS_STATE_WAIT_IDLE

Function Documentation

DEVICE_API()

DEVICE_API ( i2c_target , api_funcs  )

static

get_cmd_def()

const struct smbus_cmd_def * get_cmd_def ( struct smbus_target_data * smbus_data, uint8_t cmd )

static

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER

(

i2c_target

)

pec_crc_8()

uint8_t pec_crc_8 ( uint8_t crc, uint8_t data )

inlinestatic

reset_state_machine()

void reset_state_machine ( struct smbus_target_data * smbus_data )

static

smbus_read_handler()

int32_t smbus_read_handler ( struct i2c_target_config * config, uint8_t * val )

static

smbus_stop_handler()

int32_t smbus_stop_handler ( struct i2c_target_config * config )

static

smbus_target_get_error_count()

uint32_t smbus_target_get_error_count

(

const struct device *

dev

)

Get total number of SMBUS target errors.

Parameters

dev	The SMBUS target device instance.

Returns

Number of errors that went through the SMBUS ratelimited error macro.

smbus_target_init()

int32_t smbus_target_init ( const struct device * dev )

static

smbus_target_register()

int32_t smbus_target_register ( const struct device * dev )

static

smbus_target_register_cmd()

int32_t smbus_target_register_cmd	(	const struct device *	dev,
		uint8_t	cmd_id,
		const struct smbus_cmd_def *	smbus_cmd )

Register the given command to the SMBUS target implementation.

Parameters

dev	The device to register the command for.
cmd_id	The command ID to register the handler for.
smbus_cmd	Pointer to the smbus command to register. The memory must have persistent storage for the duration of the time the target remains registered to the I2C.

smbus_target_register_cmds()

int32_t smbus_target_register_cmds	(	const struct device *	dev,
		const struct smbus_cmd_registration *	cmds,
		size_t	num_cmds )

Register a table of commands to the SMBUS target implementation.

Parameters

dev	The device to register commands for.
cmds	Pointer to command registration table.
num_cmds	Number of entries in cmds.

Returns

0 on success, otherwise a negative error code.

smbus_target_unregister()

int32_t smbus_target_unregister ( const struct device * dev )

static

smbus_write_handler()

int smbus_write_handler ( struct i2c_target_config * config, uint8_t val )

static

smbus_write_requested()

int32_t smbus_write_requested ( struct i2c_target_config * config )

static

Variable Documentation

smbus_target_cb_impl

const struct i2c_target_callbacks smbus_target_cb_impl

Initial value:

= {
        .write_requested = &smbus_write_requested,
        .write_received = &smbus_write_handler,
        .read_requested = &smbus_read_handler,
        .read_processed = &smbus_read_handler,
        .stop = &smbus_stop_handler,
}
