flash_mux.c File Reference

#include <errno.h>
#include <zephyr/device.h>
#include <zephyr/devicetree.h>
#include <zephyr/drivers/flash.h>
#include <zephyr/logging/log.h>
#include <zephyr/sys/util.h>

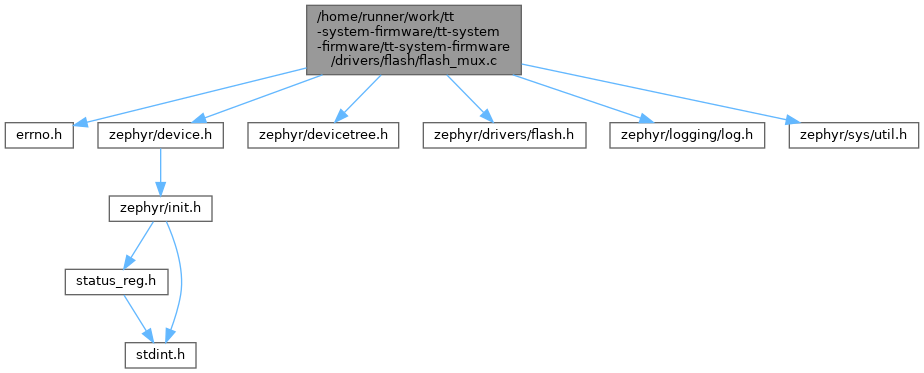

Include dependency graph for flash_mux.c:

Data Structures
struct	flash_mux_candidate
struct	flash_mux_config
struct	flash_mux_data

Macros
#define	DT_DRV_COMPAT   tenstorrent_flash_mux
#define	FLASH_MUX_JEDEC_ID_LEN   3
#define	FLASH_MUX_IS_CANDIDATE(node_id)
#define	FLASH_MUX_CANDIDATE(node_id)
#define	FLASH_MUX_FALLBACK(node_id)
#define	FLASH_MUX_DEFINE(inst)

Functions
	LOG_MODULE_REGISTER (flash_mux, CONFIG_FLASH_LOG_LEVEL)
static const struct device *	flash_mux_active (const struct device *dev)
static int	flash_mux_read (const struct device *dev, off_t offset, void *data, size_t len)
static int	flash_mux_write (const struct device *dev, off_t offset, const void *data, size_t len)
static int	flash_mux_erase (const struct device *dev, off_t offset, size_t len)
static const struct flash_parameters *	flash_mux_get_parameters (const struct device *dev)
static int	flash_mux_get_size (const struct device *dev, uint64_t *size)
static int	flash_mux_init (const struct device *dev)
static	DEVICE_API (flash, flash_mux_api)

Macro Definition Documentation

DT_DRV_COMPAT

#define DT_DRV_COMPAT   tenstorrent_flash_mux

FLASH_MUX_CANDIDATE

#define FLASH_MUX_CANDIDATE

(

node_id

)

Value:

        IF_ENABLED(UTIL_AND(FLASH_MUX_IS_CANDIDATE(node_id), DT_NODE_HAS_PROP(node_id, jedec_id)), \
                   ({                                                                              \
                           .dev = DEVICE_DT_GET(node_id),                                          \
                           .jedec_id = DT_PROP(node_id, jedec_id),                                 \
                   },))

FLASH_MUX_DEFINE

#define FLASH_MUX_DEFINE

(

inst

)

Value:

        static const struct device *const flash_mux_fallback_##inst[] = {                          \
                DT_FOREACH_CHILD_STATUS_OKAY(DT_INST_PHANDLE(inst, candidate_bus),                 \
                                             FLASH_MUX_FALLBACK)};                                 \
        BUILD_ASSERT(ARRAY_SIZE(flash_mux_fallback_##inst) == 1,                                   \
                     "Exactly one flash mux candidate must omit jedec-id");                        \
        static const struct flash_mux_candidate flash_mux_candidates_##inst[] = {                  \
                DT_FOREACH_CHILD_STATUS_OKAY(DT_INST_PHANDLE(inst, candidate_bus),                 \
                                             FLASH_MUX_CANDIDATE)};                                \
        static const struct flash_mux_config flash_mux_config_##inst = {                           \
                .fallback = flash_mux_fallback_##inst[0],                                          \
                .candidates = flash_mux_candidates_##inst,                                         \
                .num_candidates = ARRAY_SIZE(flash_mux_candidates_##inst),                         \
        };                                                                                         \
        static struct flash_mux_data flash_mux_data_##inst;                                        \
        DEVICE_DT_INST_DEFINE(inst, flash_mux_init, NULL, &flash_mux_data_##inst,                  \
                              &flash_mux_config_##inst, POST_KERNEL,                               \
                              CONFIG_FLASH_TT_MUX_INIT_PRIORITY, &flash_mux_api);

FLASH_MUX_FALLBACK

#define FLASH_MUX_FALLBACK

(

node_id

)

Value:

        IF_ENABLED(FLASH_MUX_IS_CANDIDATE(node_id),                                                \
                   (COND_CODE_1(DT_NODE_HAS_PROP(node_id, jedec_id), (),                           \
                                (DEVICE_DT_GET(node_id),))))

FLASH_MUX_IS_CANDIDATE

#define FLASH_MUX_IS_CANDIDATE

(

node_id

)

Value:

DT_PROP_OR(node_id, zephyr_deferred_init, 0)

FLASH_MUX_JEDEC_ID_LEN

#define FLASH_MUX_JEDEC_ID_LEN   3

Function Documentation

DEVICE_API()

DEVICE_API ( flash , flash_mux_api  )

static

flash_mux_active()

const struct device * flash_mux_active ( const struct device * dev )

static

flash_mux_erase()

int flash_mux_erase ( const struct device * dev, off_t offset, size_t len )

static

flash_mux_get_parameters()

const struct flash_parameters * flash_mux_get_parameters ( const struct device * dev )

static

flash_mux_get_size()

int flash_mux_get_size ( const struct device * dev, uint64_t * size )

static

flash_mux_init()

int flash_mux_init ( const struct device * dev )

static

flash_mux_read()

int flash_mux_read ( const struct device * dev, off_t offset, void * data, size_t len )

static

flash_mux_write()

int flash_mux_write ( const struct device * dev, off_t offset, const void * data, size_t len )

static

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	flash_mux	,
		CONFIG_FLASH_LOG_LEVEL	)
