gpio_tt_grendel.c File Reference

#include <zephyr/drivers/gpio.h>
#include <zephyr/drivers/gpio/gpio_utils.h>
#include <zephyr/sys/sys_io.h>
#include <platform.h>

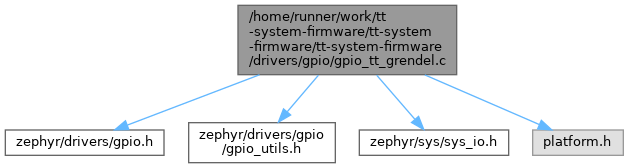

Include dependency graph for gpio_tt_grendel.c:

Data Structures
struct	gpio_grendel_config
struct	gpio_grendel_data

Macros
#define	DT_DRV_COMPAT   tenstorrent_grendel_gpio
#define	GPIO_REG_SPACING   0x10
#define	gpio_grendel_INIT(inst)

Functions
static int	gpio_grendel_pin_configure (const struct device *dev, gpio_pin_t pin, gpio_flags_t flags)
static int	gpio_grendel_port_get_raw (const struct device *dev, uint32_t *value)
static int	gpio_grendel_port_set_masked_raw (const struct device *dev, uint32_t mask, uint32_t value)
static int	gpio_grendel_port_set_bits_raw (const struct device *dev, uint32_t pins)
static int	gpio_grendel_port_clear_bits_raw (const struct device *dev, uint32_t pins)
static int	gpio_grendel_port_toggle_bits (const struct device *dev, uint32_t pins)
static int	gpio_grendel_pin_interrupt_configure (const struct device *dev, gpio_pin_t pin, enum gpio_int_mode mode, enum gpio_int_trig trig)
static	DEVICE_API (gpio, gpio_grendel_api_funcs)
static int	gpio_grendel_initialize (const struct device *dev)

Macro Definition Documentation

DT_DRV_COMPAT

#define DT_DRV_COMPAT   tenstorrent_grendel_gpio

gpio_grendel_INIT

#define gpio_grendel_INIT

(

inst

)

Value:

        static struct gpio_grendel_data gpio_grendel_data_##inst;                                  \
        static const struct gpio_grendel_config gpio_grendel_config_##inst = {                     \
                .common =                                                                          \
                        {                                                                          \
                                .port_pin_mask = GPIO_PORT_PIN_MASK_FROM_DT_INST(inst),            \
                        },                                                                         \
                .base_addr = DT_INST_REG_ADDR(inst),                                               \
        };                                                                                         \
        DEVICE_DT_INST_DEFINE(inst, gpio_grendel_initialize, NULL, &gpio_grendel_data_##inst,      \
                              &gpio_grendel_config_##inst, PRE_KERNEL_1,                           \
                              CONFIG_GPIO_INIT_PRIORITY, &gpio_grendel_api_funcs);

GPIO_REG_SPACING

#define GPIO_REG_SPACING   0x10

Function Documentation

DEVICE_API()

DEVICE_API ( gpio , gpio_grendel_api_funcs  )

static

gpio_grendel_initialize()

int gpio_grendel_initialize ( const struct device * dev )

static

gpio_grendel_pin_configure()

int gpio_grendel_pin_configure ( const struct device * dev, gpio_pin_t pin, gpio_flags_t flags )

static

gpio_grendel_pin_interrupt_configure()

int gpio_grendel_pin_interrupt_configure ( const struct device * dev, gpio_pin_t pin, enum gpio_int_mode mode, enum gpio_int_trig trig )

static

gpio_grendel_port_clear_bits_raw()

int gpio_grendel_port_clear_bits_raw ( const struct device * dev, uint32_t pins )

static

gpio_grendel_port_get_raw()

int gpio_grendel_port_get_raw ( const struct device * dev, uint32_t * value )

static

gpio_grendel_port_set_bits_raw()

int gpio_grendel_port_set_bits_raw ( const struct device * dev, uint32_t pins )

static

gpio_grendel_port_set_masked_raw()

int gpio_grendel_port_set_masked_raw ( const struct device * dev, uint32_t mask, uint32_t value )

static

gpio_grendel_port_toggle_bits()

int gpio_grendel_port_toggle_bits ( const struct device * dev, uint32_t pins )

static
