jtag_bitbang.c File Reference

#include "axi.h"
#include "jtag_profile_functions.h"
#include "tenstorrent/bitrev.h"
#include "jtag_priv.h"
#include <stdint.h>
#include <zephyr/device.h>
#include <zephyr/drivers/gpio.h>
#include <zephyr/drivers/gpio/gpio_emul.h>
#include <zephyr/drivers/jtag.h>
#include <zephyr/kernel.h>
#include <zephyr/logging/log.h>
#include <zephyr/sys/byteorder.h>
#include <zephyr/sys/util.h>

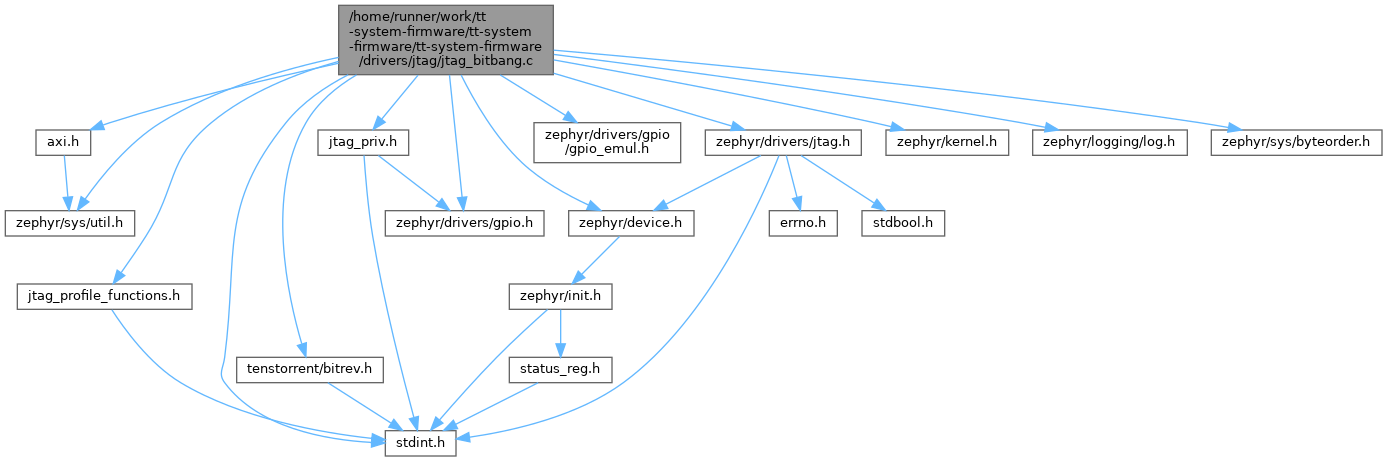

Include dependency graph for jtag_bitbang.c:

Data Structures
struct	jtag_instr_t
union	jtag_instr_u

Macros
#define	DT_DRV_COMPAT   zephyr_jtag_gpio
#define	MST_TAP_OP_ISCAN_SEL   (2)
#define	MST_TAP_OP_DEVID_SEL   (6)
#define	TENSIX_SM_RTAP   (0x19e)
#define	TENSIX_SM_SIBLEN   (4)
#define	TENSIX_SM_TDRLEN   (32)
#define	TENSIX_SIBLEN_PLUS_1_OR_0   ((TENSIX_SM_SIBLEN > 0) ? (TENSIX_SM_SIBLEN + 1) : 0)
#define	TENSIX_TDRLEN_SIBLEN_PLUS_1   (1 + TENSIX_SM_TDRLEN + TENSIX_SM_SIBLEN)
#define	SIBSHIFT(x)
#define	SIBSHIFTUP(x)
#define	INSTR_REG_BISTEN_SEL_END_0   (9)
#define	INSTR_REG_BISTEN_SEL_START_0   (7)
#define	INSTR_REG_BISTEN_SEL_MASK_0   (7)
#define	INSTR_REG_BISTEN_SEL_MASK_1   (0x3f)
#define	IF_TDI(config, stmt)
#define	JTAG_BB_GPIOS_GET_REG(n, gpios)
#define	JTAG_BB_DEVICE_DEFINE(n)

Functions
	LOG_MODULE_REGISTER (jtag_bitbang, CONFIG_JTAG_LOG_LEVEL)
static void	SET_TCK (const struct jtag_config *config)
static void	CLR_TCK (const struct jtag_config *config)
static void	SET_TDI (const struct jtag_config *config)
static void	CLR_TDI (const struct jtag_config *config)
static bool	GET_TDO (const struct jtag_config *config)
static void	SET_TMS (const struct jtag_config *config)
static void	CLR_TMS (const struct jtag_config *config)
static ALWAYS_INLINE void	jtag_bitbang_tick (const struct device *dev, uint32_t count)
int	jtag_bitbang_reset (const struct device *dev)
static ALWAYS_INLINE void	jtag_bitbang_update_ir (const struct device *dev, uint32_t count, uint64_t data)
static ALWAYS_INLINE uint64_t	jtag_bitbang_xfer_dr (const struct device *dev, uint32_t count, uint64_t data_in, bool idle, bool capture)
static ALWAYS_INLINE uint64_t	jtag_bitbang_capture_dr_idle (const struct device *dev, uint32_t count, uint64_t data_in)
static ALWAYS_INLINE uint64_t	jtag_bitbang_capture_dr (const struct device *dev, uint32_t count, uint64_t data_in)
static ALWAYS_INLINE void	jtag_bitbang_update_dr_idle (const struct device *dev, uint32_t count, uint64_t data_in)
static ALWAYS_INLINE void	jtag_bitbang_update_dr (const struct device *dev, uint32_t count, uint64_t data_in)
int	jtag_bitbang_read_id (const struct device *dev, uint32_t *id)
int	jtag_bitbang_setup (const struct device *dev)
static int	jtag_bitbang_teardown (const struct device *dev)
static ALWAYS_INLINE void	jtag_setup_access (const struct device *dev, uint32_t rtap_addr)
static ALWAYS_INLINE uint32_t	jtag_access_rtap_tdr_idle (const struct device *dev, uint32_t rtap_addr, uint32_t tdr_addr, uint32_t wrdata)
static ALWAYS_INLINE uint32_t	jtag_access_rtap_tdr (const struct device *dev, uint32_t rtap_addr, uint32_t tdr_addr, uint32_t wrdata)
static ALWAYS_INLINE void	jtag_wr_tensix_sm_rtap_tdr_idle (const struct device *dev, uint32_t tdr_addr, uint32_t wrvalue)
static ALWAYS_INLINE void	jtag_wr_tensix_sm_rtap_tdr (const struct device *dev, uint32_t tdr_addr, uint32_t wrvalue)
static ALWAYS_INLINE uint32_t	jtag_rd_tensix_sm_rtap_tdr_idle (const struct device *dev, uint32_t tdr_addr)
static ALWAYS_INLINE uint32_t	jtag_rd_tensix_sm_rtap_tdr (const struct device *dev, uint32_t tdr_addr)
void	jtag_req_clear (const struct device *dev)
int	jtag_axiread (const struct device *dev, uint32_t addr, uint32_t *result)
int	jtag_axiwrite (const struct device *dev, uint32_t addr, uint32_t value)
int	jtag_axi_blockwrite (const struct device *dev, uint32_t addr, const uint32_t *value, uint32_t len)
static int	jtag_bitbang_init (const struct device *dev)

Variables
static struct jtag_api	jtag_bitbang_api

Macro Definition Documentation

DT_DRV_COMPAT

#define DT_DRV_COMPAT   zephyr_jtag_gpio

IF_TDI

#define IF_TDI	(		config,
			stmt )

Value:

        do {                                                                                       \
                if (stmt) {                                                                        \
                        SET_TDI(config);                                                           \
                } else {                                                                           \
                        CLR_TDI(config);                                                           \
                }                                                                                  \
        } while (0)

INSTR_REG_BISTEN_SEL_END_0

#define INSTR_REG_BISTEN_SEL_END_0   (9)

INSTR_REG_BISTEN_SEL_MASK_0

#define INSTR_REG_BISTEN_SEL_MASK_0   (7)

INSTR_REG_BISTEN_SEL_MASK_1

#define INSTR_REG_BISTEN_SEL_MASK_1   (0x3f)

INSTR_REG_BISTEN_SEL_START_0

#define INSTR_REG_BISTEN_SEL_START_0   (7)

JTAG_BB_DEVICE_DEFINE

#define JTAG_BB_DEVICE_DEFINE

(

n

)

Value:

        static const struct jtag_config jtag_bitbang_config_##n = {                                \
                .tck = GPIO_DT_SPEC_INST_GET(n, tck_gpios),                                        \
                .tdi = GPIO_DT_SPEC_INST_GET(n, tdi_gpios),                                        \
                .tdo = GPIO_DT_SPEC_INST_GET(n, tdo_gpios),                                        \
                .tms = GPIO_DT_SPEC_INST_GET(n, tms_gpios),                                        \
                .trst = GPIO_DT_SPEC_INST_GET_OR(n, trst_gpios, {0}),                              \
                COND_CODE_1(CONFIG_JTAG_USE_MMAPPED_IO,                        \
                (.tck_reg = JTAG_BB_GPIOS_GET_REG(n, tck_gpios),               \
                 .tdi_reg = JTAG_BB_GPIOS_GET_REG(n, tdi_gpios),               \
                 .tdo_reg = JTAG_BB_GPIOS_GET_REG(n, tdo_gpios),               \
                 .tms_reg = JTAG_BB_GPIOS_GET_REG(n, tms_gpios),               \
                 .port_write_cycles = DT_INST_PROP(n, port_write_cycles),      \
                 ),                    \
                ())};                                 \
                                                                                                   \
        static struct jtag_data jtag_bitbang_data_##n;                                             \
                                                                                                   \
        DEVICE_DT_INST_DEFINE(n, jtag_bitbang_init, NULL, &jtag_bitbang_data_##n,                  \
                              &jtag_bitbang_config_##n, POST_KERNEL, CONFIG_JTAG_INIT_PRIO,        \
                              &jtag_bitbang_api);

JTAG_BB_GPIOS_GET_REG

#define JTAG_BB_GPIOS_GET_REG	(		n,
			gpios )

Value:

        COND_CODE_1(DT_INST_NODE_HAS_PROP(n, gpios),                           \
                (INT_TO_POINTER(DT_REG_ADDR(DT_PHANDLE(DT_DRV_INST(n), gpios)))), (NULL))

MST_TAP_OP_DEVID_SEL

#define MST_TAP_OP_DEVID_SEL   (6)

MST_TAP_OP_ISCAN_SEL

#define MST_TAP_OP_ISCAN_SEL   (2)

SIBSHIFT

#define SIBSHIFT

(

x

)

Value:

((x) >> TENSIX_SM_SIBLEN)

SIBSHIFTUP

#define SIBSHIFTUP

(

x

)

Value:

((x) << TENSIX_SM_SIBLEN)

TENSIX_SIBLEN_PLUS_1_OR_0

#define TENSIX_SIBLEN_PLUS_1_OR_0   ((TENSIX_SM_SIBLEN > 0) ? (TENSIX_SM_SIBLEN + 1) : 0)

TENSIX_SM_RTAP

#define TENSIX_SM_RTAP   (0x19e)

TENSIX_SM_SIBLEN

#define TENSIX_SM_SIBLEN   (4)

TENSIX_SM_TDRLEN

#define TENSIX_SM_TDRLEN   (32)

TENSIX_TDRLEN_SIBLEN_PLUS_1

#define TENSIX_TDRLEN_SIBLEN_PLUS_1   (1 + TENSIX_SM_TDRLEN + TENSIX_SM_SIBLEN)

Function Documentation

CLR_TCK()

void CLR_TCK ( const struct jtag_config * config )

static

CLR_TDI()

void CLR_TDI ( const struct jtag_config * config )

static

CLR_TMS()

void CLR_TMS ( const struct jtag_config * config )

static

GET_TDO()

bool GET_TDO ( const struct jtag_config * config )

static

jtag_access_rtap_tdr()

ALWAYS_INLINE uint32_t jtag_access_rtap_tdr ( const struct device * dev, uint32_t rtap_addr, uint32_t tdr_addr, uint32_t wrdata )

static

jtag_access_rtap_tdr_idle()

ALWAYS_INLINE uint32_t jtag_access_rtap_tdr_idle ( const struct device * dev, uint32_t rtap_addr, uint32_t tdr_addr, uint32_t wrdata )

static

jtag_axi_blockwrite()

int jtag_axi_blockwrite	(	const struct device *	dev,
		uint32_t	addr,
		const uint32_t *	value,
		uint32_t	len )

jtag_axiread()

int jtag_axiread	(	const struct device *	dev,
		uint32_t	addr,
		uint32_t *	result )

jtag_axiwrite()

int jtag_axiwrite	(	const struct device *	dev,
		uint32_t	addr,
		uint32_t	value )

jtag_bitbang_capture_dr()

ALWAYS_INLINE uint64_t jtag_bitbang_capture_dr ( const struct device * dev, uint32_t count, uint64_t data_in )

static

jtag_bitbang_capture_dr_idle()

ALWAYS_INLINE uint64_t jtag_bitbang_capture_dr_idle ( const struct device * dev, uint32_t count, uint64_t data_in )

static

jtag_bitbang_init()

int jtag_bitbang_init ( const struct device * dev )

static

jtag_bitbang_read_id()

int jtag_bitbang_read_id	(	const struct device *	dev,
		uint32_t *	id )

jtag_bitbang_reset()

int jtag_bitbang_reset

(

const struct device *

dev

)

jtag_bitbang_setup()

int jtag_bitbang_setup

(

const struct device *

dev

)

jtag_bitbang_teardown()

int jtag_bitbang_teardown ( const struct device * dev )

static

jtag_bitbang_tick()

ALWAYS_INLINE void jtag_bitbang_tick ( const struct device * dev, uint32_t count )

static

jtag_bitbang_update_dr()

ALWAYS_INLINE void jtag_bitbang_update_dr ( const struct device * dev, uint32_t count, uint64_t data_in )

static

jtag_bitbang_update_dr_idle()

ALWAYS_INLINE void jtag_bitbang_update_dr_idle ( const struct device * dev, uint32_t count, uint64_t data_in )

static

jtag_bitbang_update_ir()

ALWAYS_INLINE void jtag_bitbang_update_ir ( const struct device * dev, uint32_t count, uint64_t data )

static

jtag_bitbang_xfer_dr()

ALWAYS_INLINE uint64_t jtag_bitbang_xfer_dr ( const struct device * dev, uint32_t count, uint64_t data_in, bool idle, bool capture )

static

jtag_rd_tensix_sm_rtap_tdr()

ALWAYS_INLINE uint32_t jtag_rd_tensix_sm_rtap_tdr ( const struct device * dev, uint32_t tdr_addr )

static

jtag_rd_tensix_sm_rtap_tdr_idle()

ALWAYS_INLINE uint32_t jtag_rd_tensix_sm_rtap_tdr_idle ( const struct device * dev, uint32_t tdr_addr )

static

jtag_req_clear()

void jtag_req_clear

(

const struct device *

dev

)

jtag_setup_access()

ALWAYS_INLINE void jtag_setup_access ( const struct device * dev, uint32_t rtap_addr )

static

jtag_wr_tensix_sm_rtap_tdr()

ALWAYS_INLINE void jtag_wr_tensix_sm_rtap_tdr ( const struct device * dev, uint32_t tdr_addr, uint32_t wrvalue )

static

jtag_wr_tensix_sm_rtap_tdr_idle()

ALWAYS_INLINE void jtag_wr_tensix_sm_rtap_tdr_idle ( const struct device * dev, uint32_t tdr_addr, uint32_t wrvalue )

static

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	jtag_bitbang	,
		CONFIG_JTAG_LOG_LEVEL	)

SET_TCK()

void SET_TCK ( const struct jtag_config * config )

static

SET_TDI()

void SET_TDI ( const struct jtag_config * config )

static

SET_TMS()

void SET_TMS ( const struct jtag_config * config )

static

Variable Documentation

jtag_bitbang_api

struct jtag_api jtag_bitbang_api

static

Initial value:

= {.setup = jtag_bitbang_setup,
                                           .teardown = jtag_bitbang_teardown,
                                           .read_id = jtag_bitbang_read_id,
                                           .reset = jtag_bitbang_reset,
                                           .axi_read32 = jtag_axiread,
                                           .axi_write32 = jtag_axiwrite,
                                           .axi_block_write = jtag_axi_blockwrite}
