occp.c File Reference

Open Chiplet Configuration Protocol (OCCP) implementation. More...

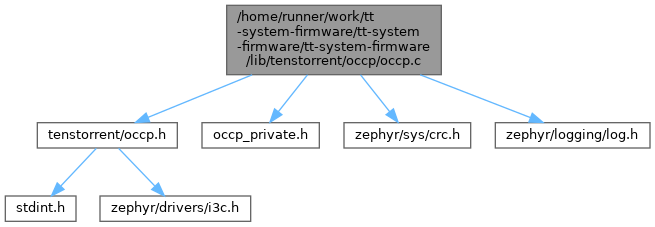

#include <tenstorrent/occp.h>
#include "occp_private.h"
#include <zephyr/sys/crc.h>
#include <zephyr/logging/log.h>

Functions
	LOG_MODULE_REGISTER (occp, CONFIG_OCCP_LOG_LEVEL)
static void	fill_cmd_header (uint8_t app_id, uint8_t msg_id, uint16_t length, struct occp_header *hdr)
int	occp_get_version (const struct occp_backend *backend, uint8_t *major, uint8_t *minor, uint8_t *patch)
	Get OCCP protocol version.
static int	occp_tx_rx (const struct occp_backend *backend, uint8_t *cmd, size_t cmd_len, uint8_t *response, size_t response_len)
static int	occp_run_transaction (const struct occp_backend *backend, uint8_t retry_cnt, uint8_t *cmd, size_t cmd_len, uint8_t *response, size_t response_len)
	Run an OCCP transaction (send command and read response) Sends an OCCP command, and reads the response. Checks response flags for errors and retries if necessary.
int	occp_write_data (const struct occp_backend *backend, uint64_t address, const uint8_t *data, size_t length)
	Write data to OCCP device.
int	occp_read_data (const struct occp_backend *backend, uint64_t address, uint8_t *data, size_t length)
	Read data from OCCP device.
int	occp_execute_image (const struct occp_backend *backend, uint64_t execution_address, uint8_t cpu_id)
	Execute image at specified address.

Variables
uint8_t	occp_rw_buffer [255]

Detailed Description

Open Chiplet Configuration Protocol (OCCP) implementation.

OCCP is a protocol used to communicate with chiplets during early boot. It can support multiple transport layers, implemented as backends within this subsystem.

Function Documentation

fill_cmd_header()

void fill_cmd_header ( uint8_t app_id, uint8_t msg_id, uint16_t length, struct occp_header * hdr )

static

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	occp	,
		CONFIG_OCCP_LOG_LEVEL	)

occp_execute_image()

int occp_execute_image	(	const struct occp_backend *	backend,
		uint64_t	execution_address,
		uint8_t	cpu_id )

Execute image at specified address.

Parameters

backend	OCCP backend to use
execution_address	Address to execute image from
cpu_id	CPU ID to execute on

Returns

0 on success, negative error code on failure

occp_get_version()

int occp_get_version	(	const struct occp_backend *	backend,
		uint8_t *	major,
		uint8_t *	minor,
		uint8_t *	patch )

Get OCCP protocol version.

Parameters

backend	OCCP backend to use
major	Pointer to store major version
minor	Pointer to store minor version
patch	Pointer to store patch version

Returns

0 on success, negative error code on failure

occp_read_data()

int occp_read_data	(	const struct occp_backend *	backend,
		uint64_t	address,
		uint8_t *	data,
		size_t	length )

Read data from OCCP device.

Parameters

backend	OCCP backend to use
address	Address to read from
data	Pointer to buffer to store read data
length	Length of data to read

Returns

0 on success, negative error code on failure

occp_run_transaction()

int occp_run_transaction ( const struct occp_backend * backend, uint8_t retry_cnt, uint8_t * cmd, size_t cmd_len, uint8_t * response, size_t response_len )

static

Run an OCCP transaction (send command and read response) Sends an OCCP command, and reads the response. Checks response flags for errors and retries if necessary.

Parameters

backend	OCCP backend to use
retry_cnt	Number of times to retry on failure
cmd	Pointer to command structure to send
cmd_len	Length of command structure
response	Pointer to response structure to receive
response_len	Length of response structure

Returns

0 on success, negative error code on failure

occp_tx_rx()

int occp_tx_rx ( const struct occp_backend * backend, uint8_t * cmd, size_t cmd_len, uint8_t * response, size_t response_len )

static

occp_write_data()

int occp_write_data	(	const struct occp_backend *	backend,
		uint64_t	address,
		const uint8_t *	data,
		size_t	length )

Write data to OCCP device.

Parameters

backend	OCCP backend to use
address	Address to write to
data	Pointer to data to write
length	Length of data to write

Returns

0 on success, negative error code on failure

Variable Documentation

occp_rw_buffer

uint8_t occp_rw_buffer[255]
