pcie.h File Reference

#include <stdint.h>
#include "noc2axi.h"

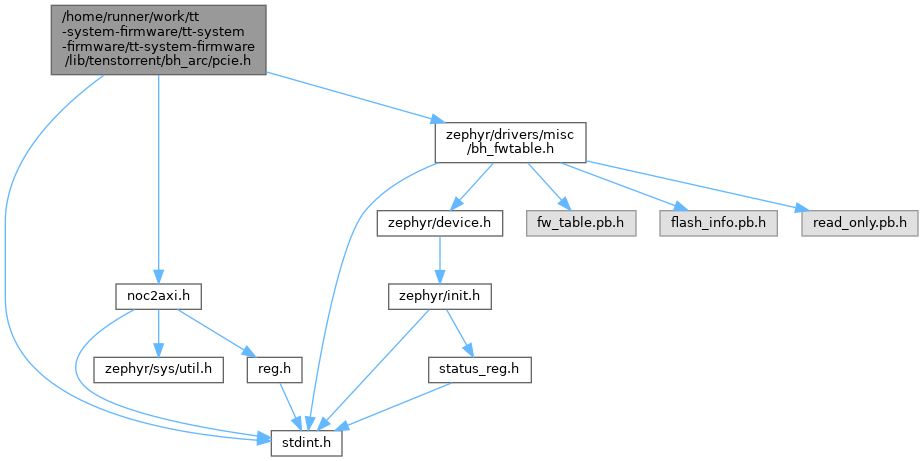

Include dependency graph for pcie.h:

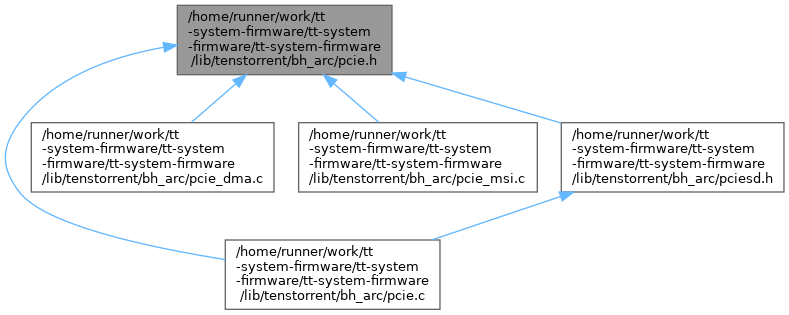

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	PCIE_BAR0_SIZE_DEFAULT_MB   512
#define	PCIE_BAR2_SIZE_DEFAULT_MB   1
#define	PCIE_BAR4_SIZE_DEFAULT_MB   32768
#define	PCIE_INST0_LOGICAL_X   2
#define	PCIE_INST1_LOGICAL_X   11
#define	PCIE_LOGICAL_Y   0
#define	PCIE_DBI_REG_TLB   14

Enumerations
enum	PCIeDeviceType {   EndPoint = 0 ,   RootComplex = 1 }
enum	PCIeInitStatus {   PCIeInitOk = 0 ,   PCIeSerdesFWLoadTimeout = 1 ,   PCIeLinkTrainTimeout = 2 }

Functions
static void	WriteDbiReg (const uint32_t addr, const uint32_t data)
static uint32_t	ReadDbiReg (const uint32_t addr)

Macro Definition Documentation

PCIE_BAR0_SIZE_DEFAULT_MB

#define PCIE_BAR0_SIZE_DEFAULT_MB   512

PCIE_BAR2_SIZE_DEFAULT_MB

#define PCIE_BAR2_SIZE_DEFAULT_MB   1

PCIE_BAR4_SIZE_DEFAULT_MB

#define PCIE_BAR4_SIZE_DEFAULT_MB   32768

PCIE_DBI_REG_TLB

#define PCIE_DBI_REG_TLB   14

PCIE_INST0_LOGICAL_X

#define PCIE_INST0_LOGICAL_X   2

PCIE_INST1_LOGICAL_X

#define PCIE_INST1_LOGICAL_X   11

PCIE_LOGICAL_Y

#define PCIE_LOGICAL_Y   0

Enumeration Type Documentation

PCIeDeviceType

enum PCIeDeviceType

Enumerator
EndPoint	0
RootComplex	1

PCIeInitStatus

enum PCIeInitStatus

Enumerator
PCIeInitOk	0
PCIeSerdesFWLoadTimeout	1
PCIeLinkTrainTimeout	2

Function Documentation

ReadDbiReg()

uint32_t ReadDbiReg ( const uint32_t addr )

inlinestatic

WriteDbiReg()

void WriteDbiReg ( const uint32_t addr, const uint32_t data )

inlinestatic
