tt_grendel_i3c_target_data Struct Reference

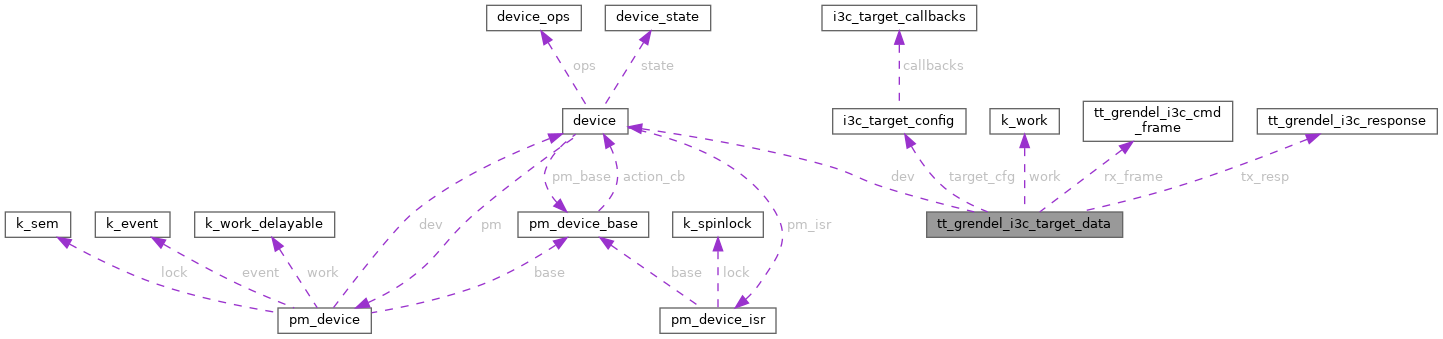

Collaboration diagram for tt_grendel_i3c_target_data:

Data Fields
const struct device *	dev
struct i3c_target_config	target_cfg
struct k_work	work
struct tt_grendel_i3c_cmd_frame	rx_frame
uint8_t	rx_len
struct tt_grendel_i3c_response	tx_resp
uint8_t	pending_opcode
uint8_t	pending_payload [TT_GRENDEL_I3C_CMD_PAYLOAD_MAX_LEN]

Field Documentation

dev

const struct device* tt_grendel_i3c_target_data::dev

pending_opcode

uint8_t tt_grendel_i3c_target_data::pending_opcode

pending_payload

uint8_t tt_grendel_i3c_target_data::pending_payload[TT_GRENDEL_I3C_CMD_PAYLOAD_MAX_LEN]

rx_frame

struct tt_grendel_i3c_cmd_frame tt_grendel_i3c_target_data::rx_frame

rx_len

uint8_t tt_grendel_i3c_target_data::rx_len

target_cfg

struct i3c_target_config tt_grendel_i3c_target_data::target_cfg

tx_resp

struct tt_grendel_i3c_response tt_grendel_i3c_target_data::tx_resp

work

struct k_work tt_grendel_i3c_target_data::work

---

The documentation for this struct was generated from the following file:

• /home/runner/work/tt-system-firmware/tt-system-firmware/tt-system-firmware/drivers/misc/tt_grendel_i3c_target/tt_grendel_i3c_target.c
