tensix.c File Reference

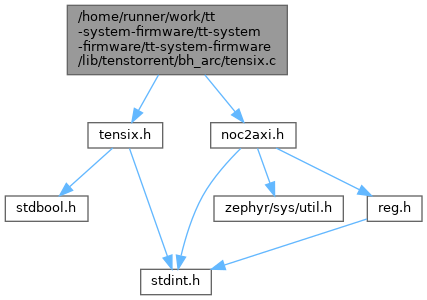

#include "tensix.h"
#include "noc2axi.h"

Macros
#define	DBG_INSTRN_BUF_CTRL0   0xFFB120A0
#define	DBG_INSTRN_BUF_CTRL1   0xFFB120A4

Functions
void	tensix_inject_instruction (uint32_t instruction, uint8_t thread, bool broadcast, uint8_t noc_x, uint8_t noc_y)
	Inject one instruction into a Tensix tile via the RISC debug instruction buffer.

Macro Definition Documentation

DBG_INSTRN_BUF_CTRL0

#define DBG_INSTRN_BUF_CTRL0   0xFFB120A0

DBG_INSTRN_BUF_CTRL1

#define DBG_INSTRN_BUF_CTRL1   0xFFB120A4

Function Documentation

tensix_inject_instruction()

void tensix_inject_instruction	(	uint32_t	instruction,
		uint8_t	thread,
		bool	broadcast,
		uint8_t	noc_x,
		uint8_t	noc_y )

Inject one instruction into a Tensix tile via the RISC debug instruction buffer.

Parameters

instruction	Raw Tensix instructions.
thread	Thread index [0,3].
broadcast	If true, use the Tensix multicast TLB so every non-harvested Tensix receives the sequence. If false, unicast to (noc_x, noc_y) only.
noc_x	X coordinate of the NOC tile when broadcast is false. Ignored when broadcasting.
noc_y	Y coordinate of the NOC tile when broadcast is false. Ignored when broadcasting.
