tensix_init.c File Reference

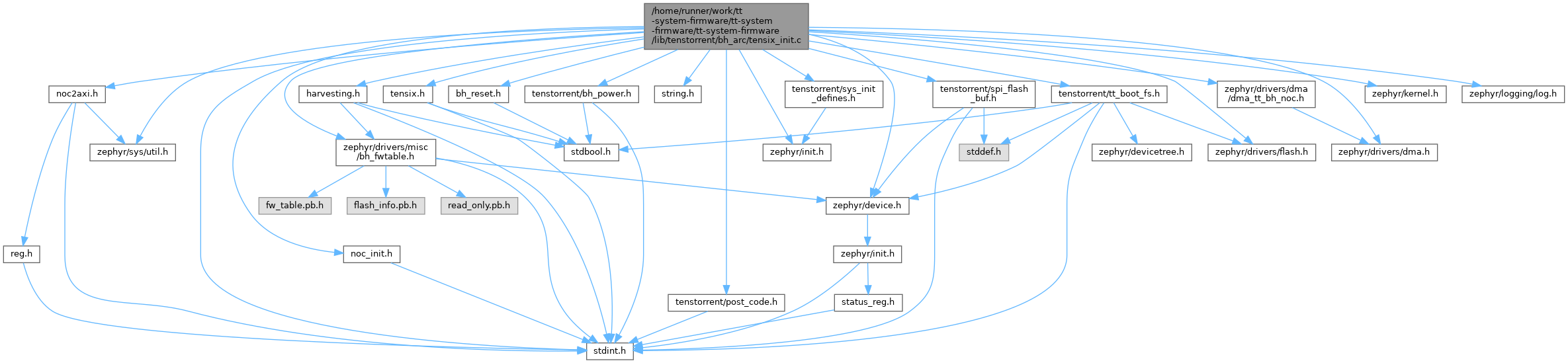

#include "noc2axi.h"
#include "noc_init.h"
#include "harvesting.h"
#include <stdint.h>
#include <string.h>
#include <tenstorrent/post_code.h>
#include <tenstorrent/spi_flash_buf.h>
#include <tenstorrent/sys_init_defines.h>
#include <tenstorrent/tt_boot_fs.h>
#include <zephyr/device.h>
#include <zephyr/drivers/flash.h>
#include <zephyr/drivers/misc/bh_fwtable.h>
#include <zephyr/drivers/dma.h>
#include <zephyr/drivers/dma/dma_tt_bh_noc.h>
#include <zephyr/init.h>
#include <zephyr/kernel.h>
#include <zephyr/logging/log.h>
#include <zephyr/sys/util.h>

Macros
#define	ARC_NOC0_X   8
#define	ARC_NOC0_Y   0
#define	TENSIX_X_START   2
#define	TENSIX_Y_START   2
#define	TENSIX_X_END   1
#define	TENSIX_Y_END   11
#define	TENSIX_L1_SIZE   (1536 * 1024)
#define	TRISC0_RESET_PC   0xFFB12228
#define	TRISC_RESET_PC_OVERRIDE   0xFFB12234
#define	SOFT_RESET_0   0xFFB121B0
#define	ALL_RISC_SOFT_RESET   0x47800
#define	TRISC_WIPE_FW_TAG   "destwipe"
#define	TRISC_WIPE_FW_LOAD_ADDR   0x6000 /* TRISC0_CODE region start */
#define	SCRATCHPAD_SIZE   CONFIG_TT_BH_ARC_SCRATCHPAD_SIZE
#define	COUNTER_TENSIX_X   1
#define	COUNTER_TENSIX_Y   2
#define	COUNTER_L1_ADDR   0x110000 /* Must match firmware hardcoded value */
#define	NUM_TENSIX_ROWS   10
#define	WIPE_DEST_TIMEOUT_US   10000 /* 10ms timeout */

Functions
	LOG_MODULE_REGISTER (tensix_init, CONFIG_TT_APP_LOG_LEVEL)
static void	EnableTensixCG (void)
static void	wipe_l1 (void)
	Zeros the l1 of every non-harvested tensix core.
static int	global_sync (uint8_t ring, uint8_t noc_tlb, uint32_t expected_count)
	Global synchronization for wipe_dest.
static int	noc2axi_write32_fw (const uint8_t *src, uint8_t *dst, size_t len)
	Helper function to write 32-bit words to NOC.
static void	setup_tensix_mcast_tlb (uint8_t ring, uint8_t noc_tlb, uint32_t addr)
	Setup the multicast TLB for the unharvested tensix cores.
static int	wipe_dest (void)
	Zeros the DEST register of every non-harvested tensix core.
void	TensixInit (void)
static int	tensix_init (void)
	SYS_INIT_APP (tensix_init)

Variables
static const struct device *const	fwtable_dev = DEVICE_DT_GET(DT_NODELABEL(fwtable))
static const struct device *const	dma_noc = DEVICE_DT_GET(DT_NODELABEL(dma1))
static const struct device *const	flash = DEVICE_DT_GET_OR_NULL(DT_NODELABEL(spi_flash))

Macro Definition Documentation

ALL_RISC_SOFT_RESET

#define ALL_RISC_SOFT_RESET   0x47800

ARC_NOC0_X

#define ARC_NOC0_X   8

ARC_NOC0_Y

#define ARC_NOC0_Y   0

COUNTER_L1_ADDR

#define COUNTER_L1_ADDR   0x110000 /* Must match firmware hardcoded value */

COUNTER_TENSIX_X

#define COUNTER_TENSIX_X   1

COUNTER_TENSIX_Y

#define COUNTER_TENSIX_Y   2

NUM_TENSIX_ROWS

#define NUM_TENSIX_ROWS   10

SCRATCHPAD_SIZE

#define SCRATCHPAD_SIZE   CONFIG_TT_BH_ARC_SCRATCHPAD_SIZE

SOFT_RESET_0

#define SOFT_RESET_0   0xFFB121B0

TENSIX_L1_SIZE

#define TENSIX_L1_SIZE   (1536 * 1024)

TENSIX_X_END

#define TENSIX_X_END   1

TENSIX_X_START

#define TENSIX_X_START   2

TENSIX_Y_END

#define TENSIX_Y_END   11

TENSIX_Y_START

#define TENSIX_Y_START   2

TRISC0_RESET_PC

#define TRISC0_RESET_PC   0xFFB12228

TRISC_RESET_PC_OVERRIDE

#define TRISC_RESET_PC_OVERRIDE   0xFFB12234

TRISC_WIPE_FW_LOAD_ADDR

#define TRISC_WIPE_FW_LOAD_ADDR   0x6000 /* TRISC0_CODE region start */

TRISC_WIPE_FW_TAG

#define TRISC_WIPE_FW_TAG   "destwipe"

WIPE_DEST_TIMEOUT_US

#define WIPE_DEST_TIMEOUT_US   10000 /* 10ms timeout */

Function Documentation

EnableTensixCG()

void EnableTensixCG ( void )

static

global_sync()

int global_sync ( uint8_t ring, uint8_t noc_tlb, uint32_t expected_count )

static

Global synchronization for wipe_dest.

This function is used to synchronize the wipe_dest operation across all tensix cores. It reads the counter from the chosen tensix core and waits for it to reach the expected count. It returns 0 if the counter reached the expected count, -ETIMEDOUT otherwise.

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	tensix_init	,
		CONFIG_TT_APP_LOG_LEVEL	)

noc2axi_write32_fw()

int noc2axi_write32_fw ( const uint8_t * src, uint8_t * dst, size_t len )

static

Helper function to write 32-bit words to NOC.

This function is used to write 32-bit words to NOC using DMA.

setup_tensix_mcast_tlb()

void setup_tensix_mcast_tlb ( uint8_t ring, uint8_t noc_tlb, uint32_t addr )

inlinestatic

Setup the multicast TLB for the unharvested tensix cores.

Parameters

ring	The ring to use for the multicast TLB
noc_tlb	The TLB number to use for the multicast TLB
addr	The address to load the firmware to

SYS_INIT_APP()

SYS_INIT_APP

(

tensix_init

)

tensix_init()

int tensix_init ( void )

static

TensixInit()

void TensixInit

(

void

)

wipe_dest()

int wipe_dest ( void )

static

Zeros the DEST register of every non-harvested tensix core.

The DEST register can only be written by code running on the local TRISC. This function loads a wipe firmware from SPI flash to each Tensix's L1, runs it on TRISC 0 to clear DEST using 32-bit stores, then puts TRISC 0 back in reset.

wipe_l1()

void wipe_l1 ( void )

static

Zeros the l1 of every non-harvested tensix core.

First zero the l1 of an arbitrary non-harvested tensix core, then broadcasts the zero'd l1 to all other non-harvested tensix cores. This approach is faster than iterating over all tensix cores sequentially to clear each l1.

Variable Documentation

dma_noc

const struct device* const dma_noc = DEVICE_DT_GET(DT_NODELABEL(dma1))

static

flash

const struct device* const flash = DEVICE_DT_GET_OR_NULL(DT_NODELABEL(spi_flash))

static

fwtable_dev

const struct device* const fwtable_dev = DEVICE_DT_GET(DT_NODELABEL(fwtable))
