tt_grendel_i3c_controller.c File Reference

#include <errno.h>
#include <string.h>
#include <zephyr/device.h>
#include <zephyr/devicetree.h>
#include <zephyr/drivers/i3c.h>
#include <zephyr/drivers/i3c/devicetree.h>
#include <zephyr/drivers/misc/tt_grendel_i3c.h>
#include <zephyr/kernel.h>
#include <zephyr/logging/log.h>
#include <zephyr/sys/byteorder.h>

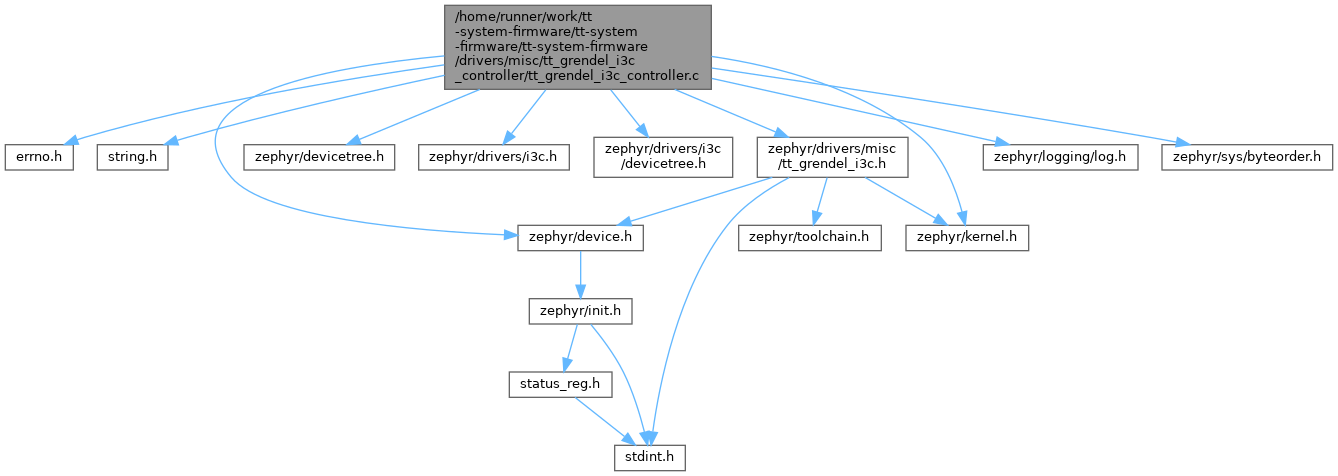

Include dependency graph for tt_grendel_i3c_controller.c:

Data Structures
struct	tt_grendel_i3c_controller_config

Macros
#define	DT_DRV_COMPAT   tenstorrent_grendel_i3c_controller
#define	TT_GRENDEL_I3C_POLL_INTERVAL   K_MSEC(100)
#define	TT_GRENDEL_I3C_DAA_RETRY_INTERVAL   K_MSEC(50)
#define	TT_GRENDEL_I3C_PING_TIMEOUT   K_MSEC(100)
#define	TT_GRENDEL_I3C_CONTROLLER_DEFINE(inst)

Functions
	LOG_MODULE_REGISTER (tt_grendel_i3c_controller, CONFIG_TT_GRENDEL_I3C_CONTROLLER_LOG_LEVEL)
	BUILD_ASSERT (CONFIG_TT_GRENDEL_I3C_CONTROLLER_INIT_PRIO > CONFIG_I3C_CONTROLLER_INIT_PRIORITY, "TT_GRENDEL_I3C_CONTROLLER_INIT_PRIO must be higher than " "I3C_CONTROLLER_INIT_PRIORITY so the I3C bus is ready")
static struct i3c_device_desc *	tt_grendel_i3c_controller_target_get (const struct tt_grendel_i3c_controller_config *config)
static int	tt_grendel_i3c_read_response (struct i3c_device_desc *target, uint8_t opcode, struct tt_grendel_i3c_response *resp)
static int	tt_grendel_i3c_run_cmd (const struct device *dev, uint8_t opcode, const void *payload, size_t payload_len, k_timeout_t timeout)
int	tt_grendel_i3c_wait_ready (const struct device *dev, k_timeout_t timeout)
	Wait until the remote die is on the bus and answering.
int	tt_grendel_i3c_d2d_init (const struct device *dev, uint8_t instance, k_timeout_t timeout)
	Reset-release D2D tile instance on the remote die and load its firmware.
int	tt_grendel_i3c_d2d_start (const struct device *dev, uint8_t instance, k_timeout_t timeout)
	Release D2D tile instance's Rocket on the remote die so its loaded firmware runs.
static int	tt_grendel_i3c_controller_init (const struct device *dev)

Macro Definition Documentation

DT_DRV_COMPAT

#define DT_DRV_COMPAT   tenstorrent_grendel_i3c_controller

TT_GRENDEL_I3C_CONTROLLER_DEFINE

#define TT_GRENDEL_I3C_CONTROLLER_DEFINE

(

inst

)

Value:

        static struct i3c_device_desc tt_grendel_i3c_controller_i3c_dev_##inst[] = {               \
                I3C_DEVICE_DESC_DT(DT_INST_PHANDLE(inst, i3c_device))};                            \
        static const struct tt_grendel_i3c_controller_config                                       \
                tt_grendel_i3c_controller_config_##inst = {                                        \
                        .i3c_dev = tt_grendel_i3c_controller_i3c_dev_##inst,                       \
        };                                                                                         \
        DEVICE_DT_INST_DEFINE(inst, tt_grendel_i3c_controller_init, NULL, NULL,                    \
                              &tt_grendel_i3c_controller_config_##inst, POST_KERNEL,               \
                              CONFIG_TT_GRENDEL_I3C_CONTROLLER_INIT_PRIO, NULL);

TT_GRENDEL_I3C_DAA_RETRY_INTERVAL

#define TT_GRENDEL_I3C_DAA_RETRY_INTERVAL   K_MSEC(50)

TT_GRENDEL_I3C_PING_TIMEOUT

#define TT_GRENDEL_I3C_PING_TIMEOUT   K_MSEC(100)

TT_GRENDEL_I3C_POLL_INTERVAL

#define TT_GRENDEL_I3C_POLL_INTERVAL   K_MSEC(100)

Function Documentation

BUILD_ASSERT()

BUILD_ASSERT	(	CONFIG_TT_GRENDEL_I3C_CONTROLLER_INIT_PRIO	,
		CONFIG_I3C_CONTROLLER_INIT_PRIORITY	,
		"TT_GRENDEL_I3C_CONTROLLER_INIT_PRIO must be higher than " "I3C_CONTROLLER_INIT_PRIORITY so the I3C bus is ready"	)

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	tt_grendel_i3c_controller	,
		CONFIG_TT_GRENDEL_I3C_CONTROLLER_LOG_LEVEL	)

tt_grendel_i3c_controller_init()

int tt_grendel_i3c_controller_init ( const struct device * dev )

static

tt_grendel_i3c_controller_target_get()

struct i3c_device_desc * tt_grendel_i3c_controller_target_get ( const struct tt_grendel_i3c_controller_config * config )

static

tt_grendel_i3c_d2d_init()

int tt_grendel_i3c_d2d_init	(	const struct device *	dev,
		uint8_t	instance,
		k_timeout_t	timeout )

Reset-release D2D tile instance on the remote die and load its firmware.

Blocks until the target answers, or timeout elapses. See TT_GRENDEL_I3C_CMD_D2D_INIT for details.

Parameters

dev	Grendel I3C controller device
instance	D2D tile index on the remote die
timeout	How long to wait for the response

Return values

0	if the target reported TT_GRENDEL_I3C_OK
-EIO	if an I3C transfer failed or the target reported TT_GRENDEL_I3C_NOT_OK
-ETIMEDOUT	if no matching response arrived in time

tt_grendel_i3c_d2d_start()

int tt_grendel_i3c_d2d_start	(	const struct device *	dev,
		uint8_t	instance,
		k_timeout_t	timeout )

Release D2D tile instance's Rocket on the remote die so its loaded firmware runs.

Blocks until the target answers, or timeout elapses.

Parameters

dev	Grendel I3C controller device
instance	D2D tile index on the remote die
timeout	How long to wait for the response

Return values

0	if the target reported TT_GRENDEL_I3C_OK
-EIO	if an I3C transfer failed or the target reported TT_GRENDEL_I3C_NOT_OK
-ETIMEDOUT	if no matching response arrived in time

tt_grendel_i3c_read_response()

int tt_grendel_i3c_read_response ( struct i3c_device_desc * target, uint8_t opcode, struct tt_grendel_i3c_response * resp )

static

tt_grendel_i3c_run_cmd()

int tt_grendel_i3c_run_cmd ( const struct device * dev, uint8_t opcode, const void * payload, size_t payload_len, k_timeout_t timeout )

static

tt_grendel_i3c_wait_ready()

int tt_grendel_i3c_wait_ready	(	const struct device *	dev,
		k_timeout_t	timeout )

Wait until the remote die is on the bus and answering.

The target only registers once the remote die has booted far enough to run its driver, so pings are expected to fail for a while. Retry until one is answered.

Parameters

dev	Grendel I3C controller device
timeout	How long to wait for the target to appear

Return values

0	once the target answers
-ETIMEDOUT	if it never did
