tt_smc_remoteproc.c File Reference

#include <zephyr/drivers/gpio.h>
#include <zephyr/drivers/i3c.h>
#include <zephyr/logging/log.h>
#include <tenstorrent/occp.h>

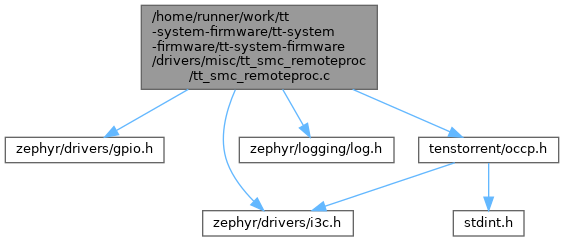

Include dependency graph for tt_smc_remoteproc.c:

Data Structures
struct	tt_smc_remoteproc_config
struct	tt_smc_remoteproc_data

Macros
#define	SMC_BOOT_TIMEOUT_MS   1000
#define	DT_DRV_COMPAT   tenstorrent_smc_remoteproc
#define	TT_SMC_REMOTEPROC_DEFINE(inst)

Functions
	LOG_MODULE_REGISTER (tt_smc_remoteproc, CONFIG_KERNEL_LOG_LEVEL)
	BUILD_ASSERT (CONFIG_TT_SMC_REMOTEPROC_INIT_PRIO > CONFIG_I3C_CONTROLLER_INIT_PRIORITY, "TT_SMC_REMOTEPROC_INIT_PRIO must be higher than I3C_CONTROLLER_INIT_PRIORITY")
int	tt_smc_remoteproc_load (const struct device *dev, uint64_t addr, const uint8_t *bin_data, size_t bin_size)
	Write binary data into remote SMC memory.
int	tt_smc_remoteproc_boot (const struct device *dev, uint64_t addr)
	Boot a previously loaded SMC image.
int	tt_smc_remoteproc_init (const struct device *dev)

Macro Definition Documentation

DT_DRV_COMPAT

#define DT_DRV_COMPAT   tenstorrent_smc_remoteproc

SMC_BOOT_TIMEOUT_MS

#define SMC_BOOT_TIMEOUT_MS   1000

TT_SMC_REMOTEPROC_DEFINE

#define TT_SMC_REMOTEPROC_DEFINE

(

inst

)

Value:

        const struct tt_smc_remoteproc_config tt_smc_remoteproc_config_##inst = {                  \
                .boot_gpio = GPIO_DT_SPEC_INST_GET_OR(inst, boot_gpios, {0}),                      \
        };                                                                                         \
                                                                                                   \
        struct i3c_device_desc tt_smc_remoteproc_i3c_dev_##inst[] = {                              \
                I3C_DEVICE_DESC_DT_INST(inst)};                                                    \
                                                                                                   \
        struct tt_smc_remoteproc_data tt_smc_remoteproc_data_##inst = {                            \
                .i3c_dev = tt_smc_remoteproc_i3c_dev_##inst,                                       \
        };                                                                                         \
                                                                                                   \
        DEVICE_DT_INST_DEFINE(inst, tt_smc_remoteproc_init, NULL, &tt_smc_remoteproc_data_##inst,  \
                              &tt_smc_remoteproc_config_##inst, POST_KERNEL,                       \
                              CONFIG_TT_SMC_REMOTEPROC_INIT_PRIO, NULL);

Function Documentation

BUILD_ASSERT()

BUILD_ASSERT	(	CONFIG_TT_SMC_REMOTEPROC_INIT_PRIO	,
		CONFIG_I3C_CONTROLLER_INIT_PRIORITY	,
		"TT_SMC_REMOTEPROC_INIT_PRIO must be higher than I3C_CONTROLLER_INIT_PRIORITY"	)

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	tt_smc_remoteproc	,
		CONFIG_KERNEL_LOG_LEVEL	)

tt_smc_remoteproc_boot()

int tt_smc_remoteproc_boot	(	const struct device *	dev,
		uint64_t	addr )

Boot a previously loaded SMC image.

Start execution of the image already placed at addr on the remote SMC CPU.

Parameters

dev	Pointer to the tt_smc_remoteproc device.
addr	Address of the loaded image entry point in the remote SMC memory map.

Returns

0 on success, or a negative errno code on failure.

tt_smc_remoteproc_init()

int tt_smc_remoteproc_init

(

const struct device *

dev

)

tt_smc_remoteproc_load()

int tt_smc_remoteproc_load	(	const struct device *	dev,
		uint64_t	addr,
		const uint8_t *	bin_data,
		size_t	bin_size )

Write binary data into remote SMC memory.

Copy an arbitrary block of binary data into the remote SMC address space at addr.

Parameters

dev	Pointer to the tt_smc_remoteproc device.
addr	Target address in the remote SMC memory map.
bin_data	Pointer to the binary data to write.
bin_size	Number of bytes in bin_data.

Returns

0 on success, or a negative errno code on failure.
