uart_tt_virt.c File Reference

#include <errno.h>
#include <stdatomic.h>
#include <tenstorrent/uart_tt_virt.h>
#include <zephyr/device.h>
#include <zephyr/drivers/uart.h>
#include <zephyr/kernel.h>
#include <zephyr/logging/log.h>
#include <zephyr/sys/util.h>

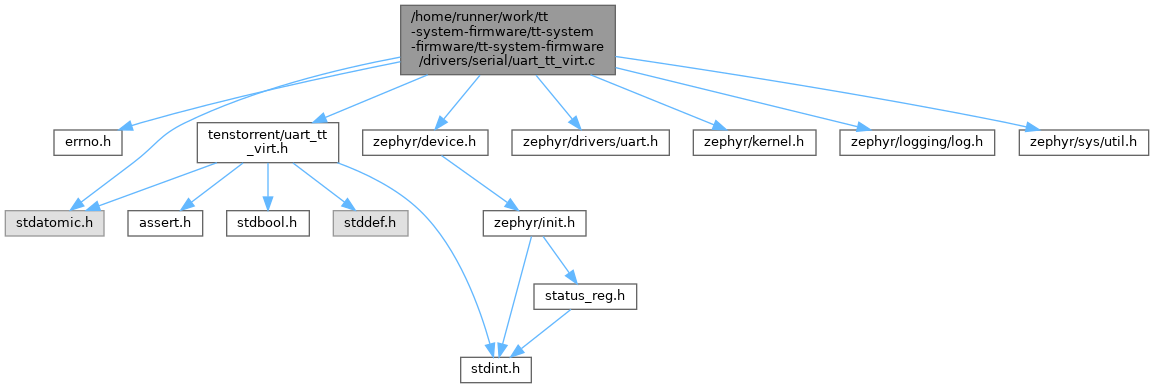

Include dependency graph for uart_tt_virt.c:

Data Structures
struct	uart_tt_virt_config
struct	uart_tt_virt_data

Macros
#define	DT_DRV_COMPAT   tenstorrent_vuart
#define	UART_TT_VIRT_DESC_SIZE(_inst)
#define	UART_TT_VIRT_DEFINE_AREA(_inst)
#define	UART_TT_VIRT_CHECK_REGION(_inst)
#define	UART_TT_VIRT_PTR(_inst)
#define	DEFINE_UART_TT_VIRT(_inst)

Functions
	LOG_MODULE_REGISTER (uart_tt_virt, CONFIG_UART_LOG_LEVEL)
static int	uart_tt_virt_err_check (const struct device *dev)
static int	uart_tt_virt_poll_in (const struct device *dev, unsigned char *p_char)
void	uart_tt_virt_poll_out (const struct device *dev, unsigned char out_char)
static	DEVICE_API (uart, uart_tt_virt_api)
__weak void	uart_tt_virt_init_callback (const struct device *dev, size_t inst)
__weak volatile struct tt_vuart *	uart_tt_virt_lookup_callback (size_t inst)
volatile struct tt_vuart *	uart_tt_virt_get (const struct device *dev)
static bool	uart_tt_virt_adoptable (const struct uart_tt_virt_config *config, volatile const struct tt_vuart *vuart)
static int	uart_tt_virt_init (const struct device *dev)

Macro Definition Documentation

DEFINE_UART_TT_VIRT

#define DEFINE_UART_TT_VIRT

(

_inst

)

Value:

        COND_CODE_1(DT_INST_NODE_HAS_PROP(_inst, memory_region),                                   \
                    (UART_TT_VIRT_CHECK_REGION(_inst)), (UART_TT_VIRT_DEFINE_AREA(_inst)))         \
        static const struct uart_tt_virt_config uart_tt_virt_config_##_inst = {                    \
                .vuart = UART_TT_VIRT_PTR(_inst),                                                  \
                .init_metadata = DT_INST_PROP(_inst, init_metadata),                               \
                .loopback = DT_INST_PROP(_inst, loopback),                                         \
                .magic = DT_INST_PROP(_inst, magic),                                               \
                .version = ((DT_INST_REG_ADDR(_inst)) << 24) |                                     \
                           (DT_INST_PROP(_inst, version) & GENMASK(23, 0)),                        \
                .rx_cap = DT_INST_PROP(_inst, rx_cap),                                             \
                .tx_cap = DT_INST_PROP(_inst, tx_cap),                                             \
        };                                                                                         \
        static struct uart_tt_virt_data uart_tt_virt_data_##_inst;                                 \
                                                                                                   \
        DEVICE_DT_INST_DEFINE(_inst, uart_tt_virt_init, PM_DEVICE_DT_INST_GET(_inst),              \
                              &uart_tt_virt_data_##_inst, &uart_tt_virt_config_##_inst,            \
                              PRE_KERNEL_1, CONFIG_SERIAL_INIT_PRIORITY, &uart_tt_virt_api);

DT_DRV_COMPAT

#define DT_DRV_COMPAT   tenstorrent_vuart

UART_TT_VIRT_CHECK_REGION

#define UART_TT_VIRT_CHECK_REGION

(

_inst

)

Value:

        BUILD_ASSERT(DT_REG_SIZE(DT_INST_PHANDLE(_inst, memory_region)) >=                         \
                             UART_TT_VIRT_DESC_SIZE(_inst),                                        \
                     "tenstorrent,vuart memory-region is too small for its buffers");

UART_TT_VIRT_DEFINE_AREA

#define UART_TT_VIRT_DEFINE_AREA

(

_inst

)

Value:

        struct uart_tt_virt_area_##_inst {                                                         \
                union {                                                                            \
                        uint32_t mem[DIV_ROUND_UP(UART_TT_VIRT_DESC_SIZE(_inst),                   \
                                                  sizeof(uint32_t))];                              \
                        struct tt_vuart vuart;                                                     \
                };                                                                                 \
        };                                                                                         \
        static struct uart_tt_virt_area_##_inst uart_tt_virt_area_##_inst;

UART_TT_VIRT_DESC_SIZE

#define UART_TT_VIRT_DESC_SIZE

(

_inst

)

Value:

        (sizeof(struct tt_vuart) + DT_INST_PROP(_inst, rx_cap) + DT_INST_PROP(_inst, tx_cap))

UART_TT_VIRT_PTR

#define UART_TT_VIRT_PTR

(

_inst

)

Value:

        COND_CODE_1(DT_INST_NODE_HAS_PROP(_inst, memory_region),                                   \
                    ((struct tt_vuart *)(uintptr_t)DT_REG_ADDR(                                    \
                            DT_INST_PHANDLE(_inst, memory_region))),                               \
                    ((struct tt_vuart *)&uart_tt_virt_area_##_inst.vuart))

Function Documentation

DEVICE_API()

DEVICE_API ( uart , uart_tt_virt_api  )

static

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	uart_tt_virt	,
		CONFIG_UART_LOG_LEVEL	)

uart_tt_virt_adoptable()

bool uart_tt_virt_adoptable ( const struct uart_tt_virt_config * config, volatile const struct tt_vuart * vuart )

static

uart_tt_virt_err_check()

int uart_tt_virt_err_check ( const struct device * dev )

static

uart_tt_virt_get()

volatile struct tt_vuart * uart_tt_virt_get

(

const struct device *

dev

)

uart_tt_virt_init()

int uart_tt_virt_init ( const struct device * dev )

static

uart_tt_virt_init_callback()

__weak void uart_tt_virt_init_callback	(	const struct device *	dev,
		size_t	inst )

uart_tt_virt_lookup_callback()

__weak volatile struct tt_vuart * uart_tt_virt_lookup_callback

(

size_t

inst

)

uart_tt_virt_poll_in()

int uart_tt_virt_poll_in ( const struct device * dev, unsigned char * p_char )

static

uart_tt_virt_poll_out()

void uart_tt_virt_poll_out	(	const struct device *	dev,
		unsigned char	out_char )
