memc_tt_mimir.c File Reference

#include <errno.h>
#include <zephyr/device.h>
#include <zephyr/devicetree.h>
#include <zephyr/drivers/memc/memc_tt_mimir.h>
#include <zephyr/logging/log.h>
#include <zephyr/sys/util.h>
#include "gddr.h"
#include "gddr_drv.h"

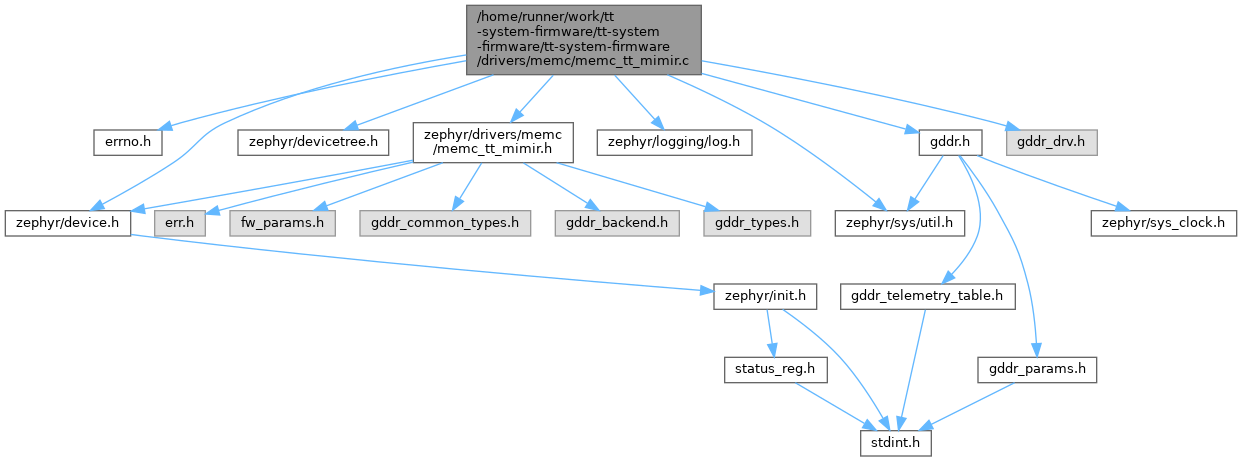

Include dependency graph for memc_tt_mimir.c:

Data Structures
struct	memc_tt_mimir_data

Macros
#define	DT_DRV_COMPAT   tenstorrent_mimir_memc
#define	MEMC_TILE_BIT(node_id, prop, idx)
#define	MEMC_GDDR_TILE_MASK   DT_INST_FOREACH_PROP_ELEM_SEP(0, mem_tiles, MEMC_TILE_BIT, (|))

Functions
	LOG_MODULE_REGISTER (memc_tt_mimir, CONFIG_MEMC_LOG_LEVEL)
int	memc_tt_mimir_set_config (const struct device *dev, const gddr_backend_t *backend, fw_params_t *params)
	Install the platform GDDR configuration for the controller.
static int	memc_tt_mimir_init (const struct device *dev)
	DEVICE_DT_INST_DEFINE (0, memc_tt_mimir_init, NULL, &memc_tt_mimir_data0, NULL, POST_KERNEL, CONFIG_MEMC_TT_MIMIR_INIT_PRIORITY, NULL)

Variables
static struct memc_tt_mimir_data	memc_tt_mimir_data0

Macro Definition Documentation

DT_DRV_COMPAT

#define DT_DRV_COMPAT   tenstorrent_mimir_memc

MEMC_GDDR_TILE_MASK

#define MEMC_GDDR_TILE_MASK   DT_INST_FOREACH_PROP_ELEM_SEP(0, mem_tiles, MEMC_TILE_BIT, (|))

MEMC_TILE_BIT

#define MEMC_TILE_BIT	(		node_id,
			prop,
			idx )

Value:

        (DT_NODE_HAS_STATUS(DT_PHANDLE_BY_IDX(node_id, prop, idx), okay)                           \
                 ? BIT(DT_PROP_BY_PHANDLE_IDX(node_id, prop, idx, tile_index))                     \
                 : 0)

Function Documentation

DEVICE_DT_INST_DEFINE()

DEVICE_DT_INST_DEFINE	(	0	,
		memc_tt_mimir_init	,
		NULL	,
		&	memc_tt_mimir_data0,
		NULL	,
		POST_KERNEL	,
		CONFIG_MEMC_TT_MIMIR_INIT_PRIORITY	,
		NULL	)

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	memc_tt_mimir	,
		CONFIG_MEMC_LOG_LEVEL	)

memc_tt_mimir_init()

int memc_tt_mimir_init ( const struct device * dev )

static

memc_tt_mimir_set_config()

int memc_tt_mimir_set_config	(	const struct device *	dev,
		const gddr_backend_t *	backend,
		fw_params_t *	params )

Install the platform GDDR configuration for the controller.

Stores the backend and fw_params in the device's data; the device passes them to gddr_init() at its own init. Call once, before the memc device initializes.

The backend and fw_params are runtime/platform-supplied (host-written params, environment-selected backend), which is why they arrive through this API rather than devicetree. params is non-const because this call fills in gddr_tile_mask from the controller's own DT topology (the mem-tiles).

Parameters

dev	The memc controller device.
backend	Caller-owned backend (non-NULL, with a non-NULL get_blob).
params	fw_params minus gddr_tile_mask

Returns

0 on success, -EINVAL if dev, backend, backend->get_blob, or params is NULL.

Variable Documentation

memc_tt_mimir_data0

struct memc_tt_mimir_data memc_tt_mimir_data0

static
