msgqueue.c File Reference

#include <stdbool.h>
#include <stdint.h>
#include <string.h>
#include <stdatomic.h>
#include <zephyr/devicetree.h>
#include <zephyr/init.h>
#include <zephyr/kernel.h>
#include <tenstorrent/msgqueue.h>
#include <tenstorrent/smc_msg.h>
#include <tenstorrent/post_code.h>
#include <tenstorrent/sys_init_defines.h>
#include "reg.h"

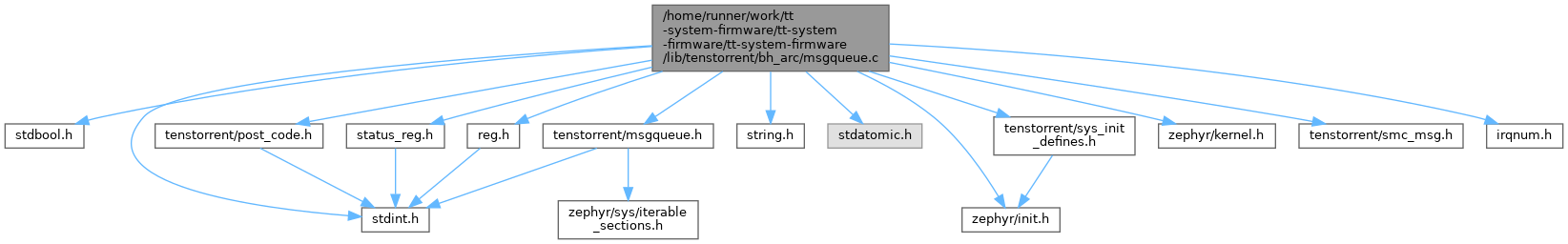

Include dependency graph for msgqueue.c:

Data Structures
struct	message_queue

Macros
#define	MSGQUEUE_INFO_NODE   DT_NODELABEL(msgqueue_info)
#define	STATUS_MSG_Q_INFO_REG_ADDR   (uintptr_t)DT_REG_ADDR(MSGQUEUE_INFO_NODE)
#define	MSGQUEUE_HAS_IRQS   DT_HAS_COMPAT_STATUS_OKAY(tenstorrent_msgqueue_irqs)
#define	MSGQUEUE_HAS_MBOX   DT_HAS_COMPAT_STATUS_OKAY(tenstorrent_msgqueue_mbox)
#define	MSGQUEUE_MBOX_NODE   DT_NODELABEL(msgqueue_mbox)
#define	MSGHANDLER_COMPAT_MASK   0x1
#define	MSG_ERROR_REPLY   0xff

Functions
	BUILD_ASSERT (sizeof(union request)<=(sizeof(uint32_t) *REQUEST_MSG_LEN))
	BUILD_ASSERT (DT_NODE_HAS_STATUS(DT_NODELABEL(msgqueue_info), okay), "TT_MSGQUEUE requires msgqueue_info status okay")
	BUILD_ASSERT (!(DT_HAS_COMPAT_STATUS_OKAY(tenstorrent_msgqueue_mbox) &&DT_HAS_COMPAT_STATUS_OKAY(tenstorrent_msgqueue_irqs)), "msgqueue_mbox and msgqueue_irqs are mutually exclusive")
	__attribute__ ((used))
static void *	unmask_voidp (void *x, uintptr_t mask)
static union request *	request_entry (struct message_queue *queue, uint32_t ptr)
static struct response *	response_entry (struct message_queue *queue, uint32_t ptr)
int	msgqueue_request_push (uint32_t msgqueue_id, const union request *request)
int	msgqueue_request_pop (uint32_t msgqueue_id, union request *request)
int	msgqueue_response_push (uint32_t msgqueue_id, const struct response *response)
int	msgqueue_response_pop (uint32_t msgqueue_id, struct response *response)
static bool	start_next_message (struct message_queue *queue, uint32_t *request_rptr_out, uint32_t *response_wptr_out)
static bool	command_writes_serial (const union request *request)
static void	advance_serial (struct message_queue *queue, const union request *request)
static void	process_l2_message_queue (const union request *request, struct response *response)
static void	handle_set_last_serial (struct message_queue *queue, const union request *request)
	Handler for host request to set the message queue serial number.
static void	handle_test (struct message_queue *queue, const union request *request, struct response *response)
	Handles the test message request.
static void	report_scratch_only_message (struct response *response)
	Handler for TT_SMC_MSG_REPORT_SCRATCH_ONLY.
static void	process_queued_message (struct message_queue *queue, const union request *request, struct response *response)
static void	process_message_queue (struct message_queue *queue)
void	process_message_queues (void)
void	msgqueue_register_handler (uint32_t msg_code, msgqueue_request_handler_t handler)
static void	prepare_msg_queue (void)
static int	register_interrupt_handlers (void)
	SYS_INIT_APP (register_interrupt_handlers)
int	init_msgqueue (void)
	SYS_INIT_APP (init_msgqueue)

Variables
static struct message_queue	message_queues [NUM_MSG_QUEUES]
static void *	message_handlers [CONFIG_TT_MSGQUEUE_NUM_MSG_CODES]

Macro Definition Documentation

MSG_ERROR_REPLY

#define MSG_ERROR_REPLY   0xff

MSGHANDLER_COMPAT_MASK

#define MSGHANDLER_COMPAT_MASK   0x1

MSGQUEUE_HAS_IRQS

#define MSGQUEUE_HAS_IRQS   DT_HAS_COMPAT_STATUS_OKAY(tenstorrent_msgqueue_irqs)

MSGQUEUE_HAS_MBOX

#define MSGQUEUE_HAS_MBOX   DT_HAS_COMPAT_STATUS_OKAY(tenstorrent_msgqueue_mbox)

MSGQUEUE_INFO_NODE

#define MSGQUEUE_INFO_NODE   DT_NODELABEL(msgqueue_info)

MSGQUEUE_MBOX_NODE

#define MSGQUEUE_MBOX_NODE   DT_NODELABEL(msgqueue_mbox)

STATUS_MSG_Q_INFO_REG_ADDR

#define STATUS_MSG_Q_INFO_REG_ADDR   (uintptr_t)DT_REG_ADDR(MSGQUEUE_INFO_NODE)

Function Documentation

__attribute__()

__attribute__

(

(used)

)

advance_serial()

void advance_serial ( struct message_queue * queue, const union request * request )

static

BUILD_ASSERT() [1/3]

BUILD_ASSERT	(	!	DT_HAS_COMPAT_STATUS_OKAY(tenstorrent_msgqueue_mbox) &&DT_HAS_COMPAT_STATUS_OKAY(tenstorrent_msgqueue_irqs),
		"msgqueue_mbox and msgqueue_irqs are mutually exclusive"	)

BUILD_ASSERT() [2/3]

BUILD_ASSERT	(	DT_NODE_HAS_STATUS(DT_NODELABEL(msgqueue_info), okay)	,
		"TT_MSGQUEUE requires msgqueue_info status okay"	)

BUILD_ASSERT() [3/3]

BUILD_ASSERT

(

sizeof(union request)<=(sizeof(uint32_t) *REQUEST_MSG_LEN)

)

command_writes_serial()

bool command_writes_serial ( const union request * request )

static

handle_set_last_serial()

void handle_set_last_serial ( struct message_queue * queue, const union request * request )

static

Handler for host request to set the message queue serial number.

Parameters

[in]	queue	The message queue whose serial number will be updated
[in]	request	The request, of type set_last_serial_rqst, with command code TT_SMC_MSG_SET_LAST_SERIAL. The serial number is taken from data[1].

This function allows the host to manually set the serial number for message queue synchronization purposes, bypassing the normal auto-increment behavior.

handle_test()

void handle_test ( struct message_queue * queue, const union request * request, struct response * response )

static

Handles the test message request.

Parameters

[in]	queue	The message queue processing this request
[in]	request	The request, of type test_rqst, with command code TT_SMC_MSG_TEST
[out]	response	The response to the host, containing the incremented test value and serial

init_msgqueue()

int init_msgqueue

(

void

)

msgqueue_register_handler()

void msgqueue_register_handler	(	uint32_t	msg_code,
		msgqueue_request_handler_t	handler )

msgqueue_request_pop()

int msgqueue_request_pop	(	uint32_t	msgqueue_id,
		union request *	request )

msgqueue_request_push()

int msgqueue_request_push	(	uint32_t	msgqueue_id,
		const union request *	request )

msgqueue_response_pop()

int msgqueue_response_pop	(	uint32_t	msgqueue_id,
		struct response *	response )

msgqueue_response_push()

int msgqueue_response_push	(	uint32_t	msgqueue_id,
		const struct response *	response )

prepare_msg_queue()

void prepare_msg_queue ( void )

static

process_l2_message_queue()

void process_l2_message_queue ( const union request * request, struct response * response )

static

process_message_queue()

void process_message_queue ( struct message_queue * queue )

static

process_message_queues()

void process_message_queues

(

void

)

process_queued_message()

void process_queued_message ( struct message_queue * queue, const union request * request, struct response * response )

static

register_interrupt_handlers()

int register_interrupt_handlers ( void )

static

report_scratch_only_message()

void report_scratch_only_message ( struct response * response )

static

Handler for TT_SMC_MSG_REPORT_SCRATCH_ONLY.

See also

report_scratch_only_rqst

request_entry()

union request * request_entry ( struct message_queue * queue, uint32_t ptr )

static

response_entry()

struct response * response_entry ( struct message_queue * queue, uint32_t ptr )

static

start_next_message()

bool start_next_message ( struct message_queue * queue, uint32_t * request_rptr_out, uint32_t * response_wptr_out )

static

SYS_INIT_APP() [1/2]

SYS_INIT_APP

(

init_msgqueue

)

SYS_INIT_APP() [2/2]

SYS_INIT_APP

(

register_interrupt_handlers

)

unmask_voidp()

void * unmask_voidp ( void * x, uintptr_t mask )

inlinestatic

Variable Documentation

message_handlers

void* message_handlers[CONFIG_TT_MSGQUEUE_NUM_MSG_CODES]

static

message_queues

struct message_queue message_queues[NUM_MSG_QUEUES]

static
