pvt_tt_bh.c File Reference

#include "tenstorrent/smc_msg.h"
#include "tenstorrent/msgqueue.h"
#include "tenstorrent/post_code.h"
#include "functional_efuse.h"
#include <float.h>
#include <math.h>
#include <zephyr/init.h>
#include <zephyr/kernel.h>
#include <zephyr/logging/log.h>
#include <zephyr/device.h>
#include <zephyr/devicetree.h>
#include <zephyr/drivers/clock_control.h>
#include <zephyr/drivers/clock_control/clock_control_tt_bh.h>
#include <zephyr/drivers/sensor.h>
#include <zephyr/drivers/sensor/tenstorrent/pvt_tt_bh.h>

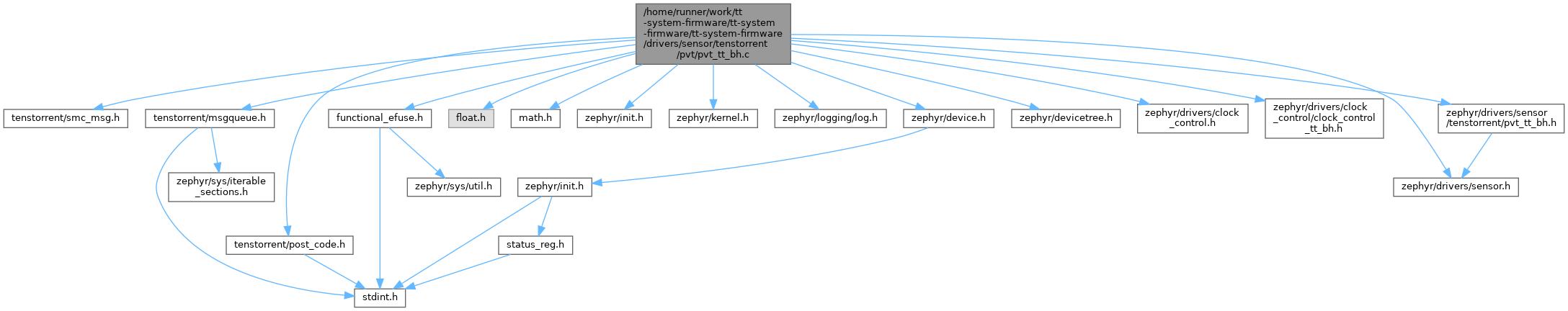

Include dependency graph for pvt_tt_bh.c:

Data Structures
struct	pd_ip_cfg0_t
union	pd_ip_cfg0_u
struct	ts_ip_cfg0_t
union	ts_ip_cfg0_u
struct	pvt_cntl_irq_en_reg_t
union	pvt_cntl_irq_en_reg_u
struct	pvt_cntl_ts_pd_irq_enable_reg_t
union	pvt_cntl_ts_pd_irq_enable_reg_u
struct	pvt_cntl_vm_irq_enable_reg_t
union	pvt_cntl_vm_irq_enable_reg_u
struct	pvt_cntl_vm_alarma_cfg_reg_t
union	pvt_cntl_vm_alarma_cfg_reg_u
struct	pvt_cntl_vm_alarmb_cfg_reg_t
union	pvt_cntl_vm_alarmb_cfg_reg_u
struct	pvt_cntl_clk_synth_reg_t
union	pvt_cntl_clk_synth_reg_u
struct	pvt_cntl_sdif_status_reg_t
union	pvt_cntl_sdif_status_reg_u
struct	pvt_cntl_sdif_reg_t
union	pvt_cntl_sdif_reg_u

Macros
#define	DT_DRV_COMPAT   tenstorrent_bh_pvt
#define	PVT_ID_NUM   0x80080008
#define	PVT_TM_SCRATCH   0x8008000C
#define	PVT_CNTL_IRQ_EN_REG_ADDR   0x80080040
#define	PVT_CNTL_TS_00_IRQ_ENABLE_REG_ADDR   0x800800C0
#define	PVT_CNTL_PD_00_IRQ_ENABLE_REG_ADDR   0x80080340
#define	PVT_CNTL_VM_00_IRQ_ENABLE_REG_ADDR   0x80080A00
#define	PVT_CNTL_TS_00_ALARMA_CFG_REG_ADDR   0x800800E0
#define	PVT_CNTL_TS_00_ALARMB_CFG_REG_ADDR   0x800800E4
#define	PVT_CNTL_TS_CMN_CLK_SYNTH_REG_ADDR   0x80080080
#define	PVT_CNTL_PD_CMN_CLK_SYNTH_REG_ADDR   0x80080300
#define	PVT_CNTL_VM_CMN_CLK_SYNTH_REG_ADDR   0x80080800
#define	PVT_CNTL_PD_CMN_SDIF_STATUS_REG_ADDR   0x80080308
#define	PVT_CNTL_PD_CMN_SDIF_REG_ADDR   0x8008030C
#define	PVT_CNTL_TS_CMN_SDIF_STATUS_REG_ADDR   0x80080088
#define	PVT_CNTL_TS_CMN_SDIF_REG_ADDR   0x8008008C
#define	PVT_CNTL_PD_CMN_SDIF_STATUS_REG_ADDR   0x80080308
#define	PVT_CNTL_PD_CMN_SDIF_REG_ADDR   0x8008030C
#define	PVT_CNTL_VM_CMN_SDIF_STATUS_REG_ADDR   0x80080808
#define	PVT_CNTL_VM_CMN_SDIF_REG_ADDR   0x8008080C
#define	PVT_CNTL_TS_00_SDIF_DONE_REG_ADDR   0x800800D4
#define	PVT_CNTL_TS_00_SDIF_DATA_REG_ADDR   0x800800D8
#define	PVT_CNTL_VM_00_SDIF_RDATA_REG_ADDR   0x80080A30
#define	PVT_CNTL_PD_00_SDIF_DONE_REG_ADDR   0x80080354
#define	PVT_CNTL_PD_00_SDIF_DATA_REG_ADDR   0x80080358
#define	TS_PD_OFFSET   0x40
#define	VM_OFFSET   0x200
#define	GET_TS_REG_ADDR(ID, REG_NAME)
#define	GET_PD_REG_ADDR(ID, REG_NAME)
#define	GET_VM_REG_ADDR(ID, REG_NAME)
#define	IP_CNTL_ADDR   0x0
#define	IP_CFG0_ADDR   0x1
#define	IP_CFGA_ADDR   0x2
#define	IP_DATA_ADDR   0x3
#define	IP_POLLING_ADDR   0x4
#define	IP_TMR_ADDR   0x5
#define	IP_CFG1_ADDR   0x6
#define	ALARM_A_THERM_TRIP_TEMP   83
#define	ALARM_B_THERM_TRIP_TEMP   109
#define	TS_HYSTERESIS_DELTA   5
#define	ALL_AGING_OSC   0x7 /* enable delay chain 19, 20, 21 for aging measurement */
#define	NUM_TS   8
#define	NUM_VM   8
#define	NUM_PD   16
#define	PVT_CNTL_IRQ_EN_REG_DEFAULT   (0x00000000)
#define	PVT_CNTL_TS_PD_IRQ_ENABLE_REG_DEFAULT   (0x00000000)
#define	PVT_CNTL_VM_IRQ_ENABLE_REG_DEFAULT   (0x00000000)
#define	PVT_CNTL_VM_ALARMA_CFG_REG_DEFAULT   (0x00000000)
#define	PVT_CNTL_VM_ALARMB_CFG_REG_DEFAULT   (0x00000000)
#define	PVT_CNTL_CLK_SYNTH_REG_DEFAULT   (0x00010000)
#define	PVT_CNTL_SDIF_STATUS_REG_DEFAULT   (0x00000000)
#define	PVT_CNTL_SDIF_REG_DEFAULT   (0x00000000)
#define	DEFINE_PVT_TT_BH(id)

Functions
	LOG_MODULE_REGISTER (pvt_tt_bh, LOG_LEVEL_DBG)
static uint16_t	temp_to_dout (float temp)
static void	pvt_tt_bh_interrupt_config (void)
static void	pvt_tt_bh_clock_config (void)
static void	wait_sdif_ready (uint32_t status_reg_addr)
static void	sdif_write (uint32_t status_reg_addr, uint32_t wr_data_reg_addr, uint32_t sdif_addr, uint32_t data)
static void	enable_aging_meas (void)
int	pvt_tt_bh_attr_get (const struct device *dev, enum sensor_channel chan, enum sensor_attribute attr, struct sensor_value *val)
static int	pvt_tt_bh_is_alive (void)
	Verifies if the PVT device is alive according to section 18.1 of the datasheet.
static int	pvt_tt_bh_init (const struct device *dev)

Variables
static const struct device *const	pll_dev_1 = DEVICE_DT_GET_OR_NULL(DT_NODELABEL(pll1))
static const struct sensor_driver_api	pvt_tt_bh_driver_api

Macro Definition Documentation

ALARM_A_THERM_TRIP_TEMP

#define ALARM_A_THERM_TRIP_TEMP   83

ALARM_B_THERM_TRIP_TEMP

#define ALARM_B_THERM_TRIP_TEMP   109

ALL_AGING_OSC

#define ALL_AGING_OSC   0x7 /* enable delay chain 19, 20, 21 for aging measurement */

DEFINE_PVT_TT_BH

#define DEFINE_PVT_TT_BH

(

id

)

Value:

        static int16_t pvt_tt_bh_therm_cali_delta[DT_PROP(DT_DRV_INST(id), num_ts)] = {};          \
                                                                                                   \
        static const struct pvt_tt_bh_config pvt_tt_bh_config_##_id = {                            \
                .num_ts = DT_PROP(DT_DRV_INST(id), num_ts),                                        \
                .num_pd = DT_PROP(DT_DRV_INST(id), num_pd),                                        \
                .num_vm = DT_PROP(DT_DRV_INST(id), num_vm),                                        \
                                                                                                   \
                .therm_cali_delta = pvt_tt_bh_therm_cali_delta,                                    \
        };                                                                                         \
                                                                                                   \
        static struct pvt_tt_bh_data pvt_tt_bh_data_##_id = {};                                    \
                                                                                                   \
        DEVICE_DT_INST_DEFINE(id, pvt_tt_bh_init, NULL, &pvt_tt_bh_data_##_id,                     \
                              &pvt_tt_bh_config_##_id, POST_KERNEL, CONFIG_SENSOR_INIT_PRIORITY,   \
                              &pvt_tt_bh_driver_api);

DT_DRV_COMPAT

#define DT_DRV_COMPAT   tenstorrent_bh_pvt

GET_PD_REG_ADDR

#define GET_PD_REG_ADDR	(		ID,
			REG_NAME )

Value:

(ID * TS_PD_OFFSET + PVT_CNTL_PD_00_##REG_NAME##_REG_ADDR)

GET_TS_REG_ADDR

#define GET_TS_REG_ADDR	(		ID,
			REG_NAME )

Value:

(ID * TS_PD_OFFSET + PVT_CNTL_TS_00_##REG_NAME##_REG_ADDR)

GET_VM_REG_ADDR

#define GET_VM_REG_ADDR	(		ID,
			REG_NAME )

Value:

(ID * VM_OFFSET + PVT_CNTL_VM_00_##REG_NAME##_REG_ADDR)

IP_CFG0_ADDR

#define IP_CFG0_ADDR   0x1

IP_CFG1_ADDR

#define IP_CFG1_ADDR   0x6

IP_CFGA_ADDR

#define IP_CFGA_ADDR   0x2

IP_CNTL_ADDR

#define IP_CNTL_ADDR   0x0

IP_DATA_ADDR

#define IP_DATA_ADDR   0x3

IP_POLLING_ADDR

#define IP_POLLING_ADDR   0x4

IP_TMR_ADDR

#define IP_TMR_ADDR   0x5

NUM_PD

#define NUM_PD   16

NUM_TS

#define NUM_TS   8

NUM_VM

#define NUM_VM   8

PVT_CNTL_CLK_SYNTH_REG_DEFAULT

#define PVT_CNTL_CLK_SYNTH_REG_DEFAULT   (0x00010000)

PVT_CNTL_IRQ_EN_REG_ADDR

#define PVT_CNTL_IRQ_EN_REG_ADDR   0x80080040

PVT_CNTL_IRQ_EN_REG_DEFAULT

#define PVT_CNTL_IRQ_EN_REG_DEFAULT   (0x00000000)

PVT_CNTL_PD_00_IRQ_ENABLE_REG_ADDR

#define PVT_CNTL_PD_00_IRQ_ENABLE_REG_ADDR   0x80080340

PVT_CNTL_PD_00_SDIF_DATA_REG_ADDR

#define PVT_CNTL_PD_00_SDIF_DATA_REG_ADDR   0x80080358

PVT_CNTL_PD_00_SDIF_DONE_REG_ADDR

#define PVT_CNTL_PD_00_SDIF_DONE_REG_ADDR   0x80080354

PVT_CNTL_PD_CMN_CLK_SYNTH_REG_ADDR

#define PVT_CNTL_PD_CMN_CLK_SYNTH_REG_ADDR   0x80080300

PVT_CNTL_PD_CMN_SDIF_REG_ADDR [1/2]

#define PVT_CNTL_PD_CMN_SDIF_REG_ADDR   0x8008030C

PVT_CNTL_PD_CMN_SDIF_REG_ADDR [2/2]

#define PVT_CNTL_PD_CMN_SDIF_REG_ADDR   0x8008030C

PVT_CNTL_PD_CMN_SDIF_STATUS_REG_ADDR [1/2]

#define PVT_CNTL_PD_CMN_SDIF_STATUS_REG_ADDR   0x80080308

PVT_CNTL_PD_CMN_SDIF_STATUS_REG_ADDR [2/2]

#define PVT_CNTL_PD_CMN_SDIF_STATUS_REG_ADDR   0x80080308

PVT_CNTL_SDIF_REG_DEFAULT

#define PVT_CNTL_SDIF_REG_DEFAULT   (0x00000000)

PVT_CNTL_SDIF_STATUS_REG_DEFAULT

#define PVT_CNTL_SDIF_STATUS_REG_DEFAULT   (0x00000000)

PVT_CNTL_TS_00_ALARMA_CFG_REG_ADDR

#define PVT_CNTL_TS_00_ALARMA_CFG_REG_ADDR   0x800800E0

PVT_CNTL_TS_00_ALARMB_CFG_REG_ADDR

#define PVT_CNTL_TS_00_ALARMB_CFG_REG_ADDR   0x800800E4

PVT_CNTL_TS_00_IRQ_ENABLE_REG_ADDR

#define PVT_CNTL_TS_00_IRQ_ENABLE_REG_ADDR   0x800800C0

PVT_CNTL_TS_00_SDIF_DATA_REG_ADDR

#define PVT_CNTL_TS_00_SDIF_DATA_REG_ADDR   0x800800D8

PVT_CNTL_TS_00_SDIF_DONE_REG_ADDR

#define PVT_CNTL_TS_00_SDIF_DONE_REG_ADDR   0x800800D4

PVT_CNTL_TS_CMN_CLK_SYNTH_REG_ADDR

#define PVT_CNTL_TS_CMN_CLK_SYNTH_REG_ADDR   0x80080080

PVT_CNTL_TS_CMN_SDIF_REG_ADDR

#define PVT_CNTL_TS_CMN_SDIF_REG_ADDR   0x8008008C

PVT_CNTL_TS_CMN_SDIF_STATUS_REG_ADDR

#define PVT_CNTL_TS_CMN_SDIF_STATUS_REG_ADDR   0x80080088

PVT_CNTL_TS_PD_IRQ_ENABLE_REG_DEFAULT

#define PVT_CNTL_TS_PD_IRQ_ENABLE_REG_DEFAULT   (0x00000000)

PVT_CNTL_VM_00_IRQ_ENABLE_REG_ADDR

#define PVT_CNTL_VM_00_IRQ_ENABLE_REG_ADDR   0x80080A00

PVT_CNTL_VM_00_SDIF_RDATA_REG_ADDR

#define PVT_CNTL_VM_00_SDIF_RDATA_REG_ADDR   0x80080A30

PVT_CNTL_VM_ALARMA_CFG_REG_DEFAULT

#define PVT_CNTL_VM_ALARMA_CFG_REG_DEFAULT   (0x00000000)

PVT_CNTL_VM_ALARMB_CFG_REG_DEFAULT

#define PVT_CNTL_VM_ALARMB_CFG_REG_DEFAULT   (0x00000000)

PVT_CNTL_VM_CMN_CLK_SYNTH_REG_ADDR

#define PVT_CNTL_VM_CMN_CLK_SYNTH_REG_ADDR   0x80080800

PVT_CNTL_VM_CMN_SDIF_REG_ADDR

#define PVT_CNTL_VM_CMN_SDIF_REG_ADDR   0x8008080C

PVT_CNTL_VM_CMN_SDIF_STATUS_REG_ADDR

#define PVT_CNTL_VM_CMN_SDIF_STATUS_REG_ADDR   0x80080808

PVT_CNTL_VM_IRQ_ENABLE_REG_DEFAULT

#define PVT_CNTL_VM_IRQ_ENABLE_REG_DEFAULT   (0x00000000)

PVT_ID_NUM

#define PVT_ID_NUM   0x80080008

PVT_TM_SCRATCH

#define PVT_TM_SCRATCH   0x8008000C

TS_HYSTERESIS_DELTA

#define TS_HYSTERESIS_DELTA   5

TS_PD_OFFSET

#define TS_PD_OFFSET   0x40

VM_OFFSET

#define VM_OFFSET   0x200

Function Documentation

enable_aging_meas()

void enable_aging_meas ( void )

static

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	pvt_tt_bh	,
		LOG_LEVEL_DBG	)

pvt_tt_bh_attr_get()

int pvt_tt_bh_attr_get	(	const struct device *	dev,
		enum sensor_channel	chan,
		enum sensor_attribute	attr,
		struct sensor_value *	val )

pvt_tt_bh_clock_config()

void pvt_tt_bh_clock_config ( void )

inlinestatic

pvt_tt_bh_init()

int pvt_tt_bh_init ( const struct device * dev )

static

pvt_tt_bh_interrupt_config()

void pvt_tt_bh_interrupt_config ( void )

inlinestatic

pvt_tt_bh_is_alive()

int pvt_tt_bh_is_alive ( void )

static

Verifies if the PVT device is alive according to section 18.1 of the datasheet.

Performs the following steps in order, 1) Verifies ID is 0 2) Verifies scratch register is 0x0 3) Verifies writing scratch register by walking 1s

If these checks fail, the PVT sensor should not be considered reliable.

Return values

0	On success.
-EIO	On hardware failure with error logs.

sdif_write()

void sdif_write ( uint32_t status_reg_addr, uint32_t wr_data_reg_addr, uint32_t sdif_addr, uint32_t data )

static

temp_to_dout()

uint16_t temp_to_dout ( float temp )

static

wait_sdif_ready()

void wait_sdif_ready ( uint32_t status_reg_addr )

static

Variable Documentation

pll_dev_1

const struct device* const pll_dev_1 = DEVICE_DT_GET_OR_NULL(DT_NODELABEL(pll1))

static

pvt_tt_bh_driver_api

const struct sensor_driver_api pvt_tt_bh_driver_api

static

Initial value:

= {
        .attr_set = NULL,
        .attr_get = pvt_tt_bh_attr_get,
        .trigger_set = NULL,


        .sample_fetch = NULL,
        .channel_get = NULL,

        .submit = pvt_tt_bh_submit,
        .get_decoder = pvt_tt_bh_get_decoder,
}
