reset_tt_bh_emul.c File Reference

#include <stdbool.h>
#include <stdint.h>
#include <zephyr/device.h>
#include <zephyr/drivers/reset.h>
#include <zephyr/drivers/reset/reset_tt_bh.h>
#include <zephyr/kernel.h>
#include <zephyr/sys/util.h>

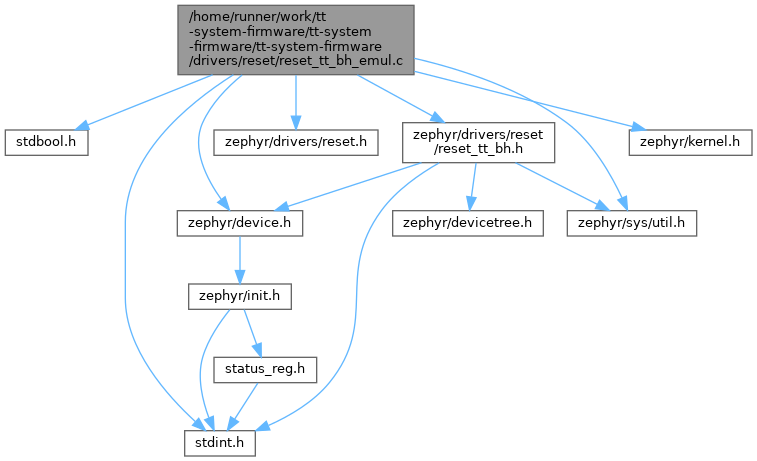

Include dependency graph for reset_tt_bh_emul.c:

Data Structures
struct	tt_bh_reset_emul_config
struct	tt_bh_reset_emul_data

Macros
#define	DT_DRV_COMPAT   tenstorrent_bh_reset_emul
#define	TT_BH_RESET_EMUL_MASK_FROM_NRESETS(_n)
#define	TT_BH_RESET_EMUL_MASK(_n)
#define	TT_BH_RESET_EMUL_NUM_SPECIFIERS(_n)
#define	TT_BH_RESET_EMUL_N_BANKS(_n)
#define	TT_BH_RESET_EMUL_MASK_DEFINE(_n)
#define	TT_BH_RESET_EMUL_DEFINE(_n)

Functions
static bool	tt_bh_reset_emul_is_valid_id (const struct device *dev, uint32_t id)
static bool	tt_bh_reset_emul_is_valid_offset (const struct device *dev, uint32_t offset)
static uint32_t *	tt_bh_reset_emul_bank (struct tt_bh_reset_emul_data *data, uint32_t offset)
static int	tt_bh_reset_emul_status (const struct device *dev, uint32_t id, uint8_t *status)
static int	tt_bh_reset_emul_line_assert (const struct device *dev, uint32_t id)
static int	tt_bh_reset_emul_line_deassert (const struct device *dev, uint32_t id)
static int	tt_bh_reset_emul_line_toggle (const struct device *dev, uint32_t id)
int	reset_tt_bh_write (const struct device *dev, uint32_t value)
	Absolute write to a BH reset-unit bank register.
int	reset_tt_bh_lines_assert (const struct device *dev, uint32_t offset, uint32_t mask)
	Assert lines in mask at offset with a single RMW.
int	reset_tt_bh_lines_deassert (const struct device *dev, uint32_t offset, uint32_t mask)
	Deassert lines in mask at offset with a single RMW.
static int	tt_bh_reset_emul_init (const struct device *dev)
static	DEVICE_API (reset, tt_bh_reset_emul_api)
	DT_INST_FOREACH_STATUS_OKAY (TT_BH_RESET_EMUL_DEFINE)

Macro Definition Documentation

DT_DRV_COMPAT

#define DT_DRV_COMPAT   tenstorrent_bh_reset_emul

TT_BH_RESET_EMUL_DEFINE

#define TT_BH_RESET_EMUL_DEFINE

(

_n

)

Value:

        BUILD_ASSERT(TT_BH_RESET_EMUL_NUM_SPECIFIERS(_n) <= 1,                                     \
                     "Maximally 1 of nresets or reset-mask may be specified");                     \
        BUILD_ASSERT(TT_BH_RESET_EMUL_N_BANKS(_n) >= 1, "n-banks must be at least 1");             \
                                                                                                   \
        static uint32_t tt_bh_reset_emul_vals_##_n[TT_BH_RESET_EMUL_N_BANKS(_n)];                  \
        static struct tt_bh_reset_emul_data tt_bh_reset_emul_data_##_n = {                         \
                .values = tt_bh_reset_emul_vals_##_n,                                              \
        };                                                                                         \
        static const struct tt_bh_reset_emul_config tt_bh_reset_emul_config_##_n = {               \
                .reset_mask = TT_BH_RESET_EMUL_MASK_DEFINE(_n),                                    \
                .size = TT_BH_RESET_EMUL_N_BANKS(_n) * TT_BH_RESET_BANK_STRIDE,                    \
        };                                                                                         \
                                                                                                   \
        BUILD_ASSERT(TT_BH_RESET_EMUL_MASK_DEFINE(_n) != 0, "reset mask should never be zero");    \
                                                                                                   \
        DEVICE_DT_INST_DEFINE(_n, tt_bh_reset_emul_init, NULL, &tt_bh_reset_emul_data_##_n,        \
                              &tt_bh_reset_emul_config_##_n, PRE_KERNEL_1,                         \
                              CONFIG_RESET_INIT_PRIORITY, &tt_bh_reset_emul_api);

TT_BH_RESET_EMUL_MASK

#define TT_BH_RESET_EMUL_MASK

(

_n

)

Value:

DT_INST_PROP_OR(_n, reset_mask, 0)

TT_BH_RESET_EMUL_MASK_DEFINE

#define TT_BH_RESET_EMUL_MASK_DEFINE

(

_n

)

Value:

        ((TT_BH_RESET_EMUL_MASK(_n) | TT_BH_RESET_EMUL_MASK_FROM_NRESETS(_n))                      \
                 ? (TT_BH_RESET_EMUL_MASK(_n) | TT_BH_RESET_EMUL_MASK_FROM_NRESETS(_n))            \
                 : UINT32_MAX)

TT_BH_RESET_EMUL_MASK_FROM_NRESETS

#define TT_BH_RESET_EMUL_MASK_FROM_NRESETS

(

_n

)

Value:

        ((uint32_t)BIT64_MASK(DT_INST_PROP_OR(_n, nresets, 0)))

TT_BH_RESET_EMUL_N_BANKS

#define TT_BH_RESET_EMUL_N_BANKS

(

_n

)

Value:

DT_INST_PROP_OR(_n, n_banks, 1)

TT_BH_RESET_EMUL_NUM_SPECIFIERS

#define TT_BH_RESET_EMUL_NUM_SPECIFIERS

(

_n

)

Value:

        (!!DT_INST_PROP_OR(_n, nresets, 0) + !!DT_INST_PROP_OR(_n, reset_mask, 0))

Function Documentation

DEVICE_API()

DEVICE_API ( reset , tt_bh_reset_emul_api  )

static

DT_INST_FOREACH_STATUS_OKAY()

DT_INST_FOREACH_STATUS_OKAY

(

TT_BH_RESET_EMUL_DEFINE

)

reset_tt_bh_lines_assert()

int reset_tt_bh_lines_assert	(	const struct device *	dev,
		uint32_t	offset,
		uint32_t	mask )

Assert lines in mask at offset with a single RMW.

offset is a byte offset from the controller base (typically a multiple of TT_BH_RESET_BANK_STRIDE). Active-low: clears bits in mask. Invalid if offset is out of range or mask shares no bits with the controller's reset-mask.

reset_tt_bh_lines_deassert()

int reset_tt_bh_lines_deassert	(	const struct device *	dev,
		uint32_t	offset,
		uint32_t	mask )

Deassert lines in mask at offset with a single RMW.

Active-low: sets bits in mask. Used for dual-field banks (eth/ddr) where tile and RISC halves share one MMIO word, multi-bank tensix regions, and full-bank releases.

reset_tt_bh_write()

int reset_tt_bh_write	(	const struct device *	dev,
		uint32_t	value )

Absolute write to a BH reset-unit bank register.

Sets the entire bank word at offset 0 (no read-modify-write). Use when init must force a known full-register state (e.g. dual-field tile half deasserted with RISC half still asserted). Prefer reset_tt_bh_lines_assert/deassert when only selected lines should change.

tt_bh_reset_emul_bank()

uint32_t * tt_bh_reset_emul_bank ( struct tt_bh_reset_emul_data * data, uint32_t offset )

inlinestatic

tt_bh_reset_emul_init()

int tt_bh_reset_emul_init ( const struct device * dev )

static

tt_bh_reset_emul_is_valid_id()

bool tt_bh_reset_emul_is_valid_id ( const struct device * dev, uint32_t id )

inlinestatic

tt_bh_reset_emul_is_valid_offset()

bool tt_bh_reset_emul_is_valid_offset ( const struct device * dev, uint32_t offset )

inlinestatic

tt_bh_reset_emul_line_assert()

int tt_bh_reset_emul_line_assert ( const struct device * dev, uint32_t id )

static

tt_bh_reset_emul_line_deassert()

int tt_bh_reset_emul_line_deassert ( const struct device * dev, uint32_t id )

static

tt_bh_reset_emul_line_toggle()

int tt_bh_reset_emul_line_toggle ( const struct device * dev, uint32_t id )

static

tt_bh_reset_emul_status()

int tt_bh_reset_emul_status ( const struct device * dev, uint32_t id, uint8_t * status )

static
