tt_d2d_config Struct Reference

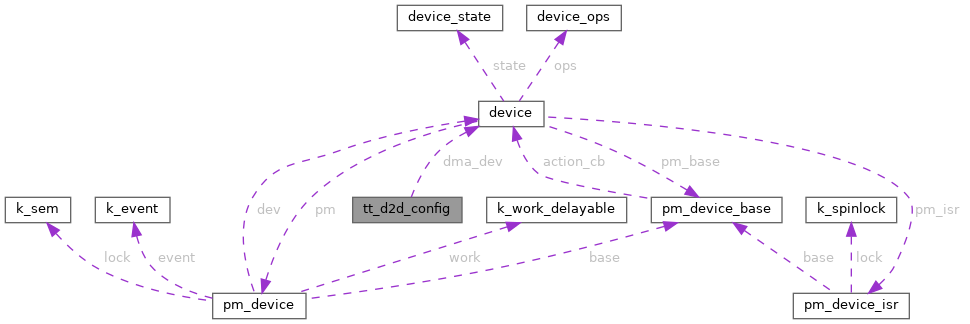

Collaboration diagram for tt_d2d_config:

Data Fields
uintptr_t	base
const struct device *	dma_dev
uint32_t	dma_channel
uint32_t	sram_size
uint32_t	bits_per_channel
uint32_t	refclk_period_ns
uint32_t	apb_clk_period_ps
uint32_t	pll_freq_ghz
uint32_t	package_type_this_die
uint32_t	package_type_other_die
bool	bypass_phy
bool	bypass_vreg
bool	disable_sideband

Field Documentation

apb_clk_period_ps

uint32_t tt_d2d_config::apb_clk_period_ps

base

uintptr_t tt_d2d_config::base

bits_per_channel

uint32_t tt_d2d_config::bits_per_channel

bypass_phy

bool tt_d2d_config::bypass_phy

bypass_vreg

bool tt_d2d_config::bypass_vreg

disable_sideband

bool tt_d2d_config::disable_sideband

dma_channel

uint32_t tt_d2d_config::dma_channel

dma_dev

const struct device* tt_d2d_config::dma_dev

package_type_other_die

uint32_t tt_d2d_config::package_type_other_die

package_type_this_die

uint32_t tt_d2d_config::package_type_this_die

pll_freq_ghz

uint32_t tt_d2d_config::pll_freq_ghz

refclk_period_ns

uint32_t tt_d2d_config::refclk_period_ns

sram_size

uint32_t tt_d2d_config::sram_size

---

The documentation for this struct was generated from the following file:

• /home/runner/work/tt-system-firmware/tt-system-firmware/tt-system-firmware/drivers/misc/tt_d2d/tt_d2d.c
