throttler.c File Reference

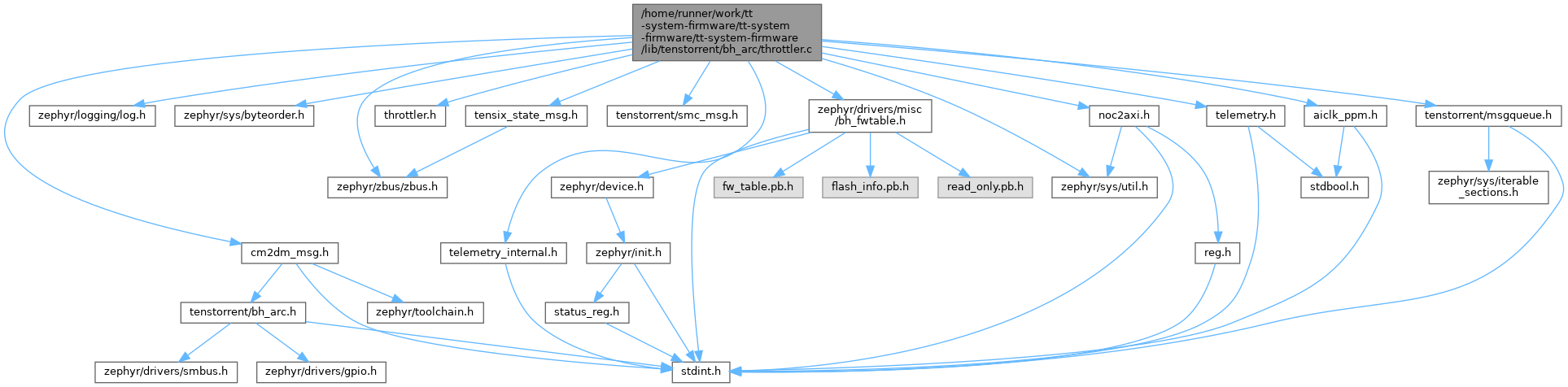

#include <zephyr/sys/util.h>
#include <zephyr/logging/log.h>
#include <zephyr/sys/byteorder.h>
#include <zephyr/zbus/zbus.h>
#include "throttler.h"
#include "aiclk_ppm.h"
#include <tenstorrent/smc_msg.h>
#include <tenstorrent/msgqueue.h>
#include "cm2dm_msg.h"
#include <zephyr/drivers/misc/bh_fwtable.h>
#include "telemetry_internal.h"
#include "telemetry.h"
#include "noc2axi.h"
#include "tensix_state_msg.h"

Data Structures
struct	ThrottlerLimitRange
struct	ThrottlerParams
struct	Throttler

Macros
#define	kThrottlerAiclkScaleFactor   500.0F
#define	DEFAULT_BOARD_POWER_LIMIT   150
#define	ADVANCE_CIRCULAR_POINTER(pointer, array)

Enumerations
enum	ThrottlerId {   kThrottlerTDP ,   kThrottlerFastTDC ,   kThrottlerTDC ,   kThrottlerThm ,   kThrottlerBoardPower ,   kThrottlerGDDRThm ,   kThrottlerDopplerSlow ,   kThrottlerCount }

Functions
	LOG_MODULE_REGISTER (throttler)
static float	get_throttler_clamped_limit (ThrottlerId id, float limit)
static void	SetThrottlerLimit (ThrottlerId id, float limit)
static void	BroadcastKernelThrottleState (void)
static void	InitKernelThrottling (void)
static void	SendKernelThrottlingMessage (bool throttle)
static void	doppler_tensix_state_callback (const struct zbus_channel *chan)
	ZBUS_LISTENER_DEFINE (doppler_tensix_state_listener, doppler_tensix_state_callback)
	ZBUS_CHAN_ADD_OBS (tensix_state_chan, doppler_tensix_state_listener, 0)
void	InitThrottlers (void)
static void	UpdateThrottler (ThrottlerId id, float value)
static void	UpdateThrottlerArb (ThrottlerId id)
static uint16_t	UpdateMovingAveragePower (uint16_t current_power)
static bool	DopplerActive (void)
static void	UpdateDoppler (const TelemetryInternalData *telemetry)
void	CalculateThrottlers (void)
int32_t	Dm2CmSetBoardPowerLimit (const uint8_t *data, uint8_t size)
static uint8_t	set_tdp_limit_handler (const union request *request, struct response *response)
	REGISTER_MESSAGE (TT_SMC_MSG_SET_TDP_LIMIT, set_tdp_limit_handler)

Variables
static uint32_t	power_limit
static bool	doppler
static bool	doppler_slow
static bool	doppler_t2
static bool	doppler_t3
static const bool	thermal_throttling = true
static const struct device *const	fwtable_dev = DEVICE_DT_GET(DT_NODELABEL(fwtable))
static const ThrottlerLimitRange	throttler_limit_ranges [kThrottlerCount]
static Throttler	throttler [kThrottlerCount]
static uint32_t	throttle_counter
static const uint32_t	kKernelThrottleAddress = 0x10
static bool	tensixes_enabled = true
static uint16_t	board_power_history [1000]
static uint16_t *	board_power_history_cursor = board_power_history
static uint32_t	board_power_sum
static bool	kernel_nops_enabled
static uint8_t	t2_count
static uint8_t	t3_count

Macro Definition Documentation

ADVANCE_CIRCULAR_POINTER

#define ADVANCE_CIRCULAR_POINTER	(		pointer,
			array )

Value:

        do {                                                                                       \
                if (++(pointer) == (array) + ARRAY_SIZE(array))                                    \
                        (pointer) = (array);                                                       \
        } while (false)

DEFAULT_BOARD_POWER_LIMIT

#define DEFAULT_BOARD_POWER_LIMIT   150

kThrottlerAiclkScaleFactor

#define kThrottlerAiclkScaleFactor   500.0F

Enumeration Type Documentation

ThrottlerId

enum ThrottlerId

Enumerator
kThrottlerTDP
kThrottlerFastTDC
kThrottlerTDC
kThrottlerThm
kThrottlerBoardPower
kThrottlerGDDRThm
kThrottlerDopplerSlow
kThrottlerCount

Function Documentation

BroadcastKernelThrottleState()

void BroadcastKernelThrottleState ( void )

static

CalculateThrottlers()

void CalculateThrottlers

(

void

)

Dm2CmSetBoardPowerLimit()

int32_t Dm2CmSetBoardPowerLimit	(	const uint8_t *	data,
		uint8_t	size )

doppler_tensix_state_callback()

void doppler_tensix_state_callback ( const struct zbus_channel * chan )

static

DopplerActive()

bool DopplerActive ( void )

static

get_throttler_clamped_limit()

float get_throttler_clamped_limit ( ThrottlerId id, float limit )

static

InitKernelThrottling()

void InitKernelThrottling ( void )

static

InitThrottlers()

void InitThrottlers

(

void

)

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER

(

throttler

)

REGISTER_MESSAGE()

REGISTER_MESSAGE	(	TT_SMC_MSG_SET_TDP_LIMIT	,
		set_tdp_limit_handler	)

SendKernelThrottlingMessage()

void SendKernelThrottlingMessage ( bool throttle )

static

set_tdp_limit_handler()

uint8_t set_tdp_limit_handler ( const union request * request, struct response * response )

static

SetThrottlerLimit()

void SetThrottlerLimit ( ThrottlerId id, float limit )

static

UpdateDoppler()

void UpdateDoppler ( const TelemetryInternalData * telemetry )

static

UpdateMovingAveragePower()

uint16_t UpdateMovingAveragePower ( uint16_t current_power )

static

UpdateThrottler()

void UpdateThrottler ( ThrottlerId id, float value )

static

UpdateThrottlerArb()

void UpdateThrottlerArb ( ThrottlerId id )

static

ZBUS_CHAN_ADD_OBS()

ZBUS_CHAN_ADD_OBS	(	tensix_state_chan	,
		doppler_tensix_state_listener	,
		0	)

ZBUS_LISTENER_DEFINE()

ZBUS_LISTENER_DEFINE	(	doppler_tensix_state_listener	,
		doppler_tensix_state_callback	)

Variable Documentation

board_power_history

uint16_t board_power_history[1000]

static

board_power_history_cursor

uint16_t* board_power_history_cursor = board_power_history

static

board_power_sum

uint32_t board_power_sum

static

doppler

bool doppler

static

doppler_slow

bool doppler_slow

static

doppler_t2

bool doppler_t2

static

doppler_t3

bool doppler_t3

static

fwtable_dev

const struct device* const fwtable_dev = DEVICE_DT_GET(DT_NODELABEL(fwtable))

static

kernel_nops_enabled

bool kernel_nops_enabled

static

kKernelThrottleAddress

const uint32_t kKernelThrottleAddress = 0x10

static

power_limit

uint32_t power_limit

static

t2_count

uint8_t t2_count

static

t3_count

uint8_t t3_count

static

tensixes_enabled

bool tensixes_enabled = true

static

thermal_throttling

const bool thermal_throttling = true

static

throttle_counter

uint32_t throttle_counter

static

throttler

Throttler throttler[kThrottlerCount]

static

throttler_limit_ranges

const ThrottlerLimitRange throttler_limit_ranges[kThrottlerCount]

static

Initial value:

= {
        [kThrottlerTDP]            = { .min = 50, .max = 500, },
        [kThrottlerFastTDC]    = { .min = 50, .max = 500, },
        [kThrottlerTDC]            = { .min = 50, .max = 400, },
        [kThrottlerThm]            = { .min = 50, .max = 100, },
        [kThrottlerBoardPower]      = { .min = 50, .max = 600, },
        [kThrottlerGDDRThm]    = { .min = 50, .max = 100, },
        [kThrottlerDopplerSlow]    = { .min = 50, .max = 1200, },
}
