tt_pcie_log.c File Reference

#include <zephyr/kernel.h>
#include <zephyr/logging/log.h>
#include <zephyr/logging/log_backend.h>
#include <zephyr/logging/log_output.h>
#include <zephyr/logging/log_ctrl.h>
#include <zephyr/logging/log_msg.h>
#include <string.h>
#include <tenstorrent/smc_msg.h>
#include <tenstorrent/msgqueue.h>
#include <zephyr/logging/log_backend_std.h>
#include "chip_info.h"
#include "noc2axi.h"

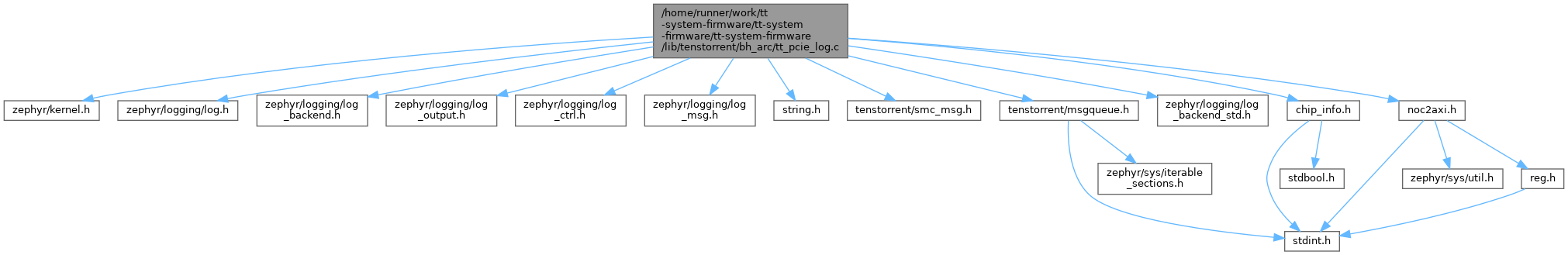

Include dependency graph for tt_pcie_log.c:

Data Structures
struct	fw_log_entry_header
struct	fw_log_buffer_header

Macros
#define	TT_PCIE_LOG_SUBCMD_SETUP   1
#define	TT_PCIE_LOG_SUBCMD_RELEASE   2
#define	FW_LOG_SOURCE_SMC   0
#define	FW_LOG_SOURCE_DMC   1
#define	FW_LOG_BUFFER_MAGIC   0x544C4F47 /* "TLOG" */
#define	FW_LOG_BUFFER_OWNER_FW   0x0 /* Firmware owns buffer, host has consumed */
#define	FW_LOG_BUFFER_OWNER_HOST   0x1 /* Host owns buffer, firmware has produced data */
#define	FLUSH_THRESHOLD_BYTES   (sizeof(struct fw_log_entry_header) + 256)
#define	TT_PCIE_LOG_TLB   11
#define	PCIE_X   19
#define	PCIE_Y   24

Functions
void	SendPcieMsi (uint8_t x, uint8_t y, uint32_t vector_id)
	LOG_MODULE_REGISTER (fw_tt_pcie_log_backend, CONFIG_LOG_DEFAULT_LEVEL)
static void	flush_buffer_to_host (void)
	Flush accumulated framed messages to host.
static void	flush_work_handler (struct k_work *work)
	Work handler to flush framed buffer to host.
static void	flush_timer_callback (struct k_timer *timer)
	Timer callback to submit flush work.
static uint8_t	setup_tt_pcie_log_backend (uint32_t buffer_addr_lo, uint32_t buffer_addr_hi, uint32_t buffer_size, uint8_t host_version)
	Setup host tt_pcie_log by configuring NOC2AXI TLB and transferring local buffer.
static uint8_t	release_tt_pcie_log_backend (void)
	Release host tt_pcie_log and revert to local buffer only.
static int	putc_in_frame (uint8_t *data, size_t length, void *ctx)
	Character output function for Zephyr log formatting - writes directly to 4KB buffer.
	LOG_OUTPUT_DEFINE (log_output_tt_pcie, putc_in_frame, buf, 1)
static void	backend_process (const struct log_backend *const backend, union log_msg_generic *msg)
	Zephyr log backend process function - called for each individual log message.
static void	backend_panic (const struct log_backend *const backend)
	Zephyr log backend panic function - called when system panics.
static void	backend_dropped (const struct log_backend *const backend, uint32_t cnt)
	Zephyr log backend dropped function - called when messages are dropped.
static void	backend_init (const struct log_backend *const backend)
	Initialize the Zephyr log backend.
static uint8_t	tt_pcie_log_handler (const union request *request, struct response *response)
	Handles the request to setup or release FW tt_pcie_log.
	REGISTER_MESSAGE (TT_SMC_MSG_TT_PCIE_LOG, tt_pcie_log_handler)
	LOG_BACKEND_DEFINE (backend_tt_pcie_log, backend_api, true)

Variables
struct fw_log_entry_header	__packed
static bool	host_available
static uint64_t	log_buffer_iova
static uint32_t	log_buffer_size
static uint32_t	sequence_number
static uint8_t	framed_log_buffer [CONFIG_TT_PCIE_LOG_BACKEND_BUFFER_SIZE]
static uint32_t	framed_buffer_pos
static struct k_timer	flush_timer
static struct k_work	flush_work
static struct k_mutex	buffer_mutex
static char	buf [1]
static struct log_backend_api	backend_api

Macro Definition Documentation

FLUSH_THRESHOLD_BYTES

#define FLUSH_THRESHOLD_BYTES   (sizeof(struct fw_log_entry_header) + 256)

FW_LOG_BUFFER_MAGIC

#define FW_LOG_BUFFER_MAGIC   0x544C4F47 /* "TLOG" */

FW_LOG_BUFFER_OWNER_FW

#define FW_LOG_BUFFER_OWNER_FW   0x0 /* Firmware owns buffer, host has consumed */

FW_LOG_BUFFER_OWNER_HOST

#define FW_LOG_BUFFER_OWNER_HOST   0x1 /* Host owns buffer, firmware has produced data */

FW_LOG_SOURCE_DMC

#define FW_LOG_SOURCE_DMC   1

FW_LOG_SOURCE_SMC

#define FW_LOG_SOURCE_SMC   0

PCIE_X

#define PCIE_X   19

PCIE_Y

#define PCIE_Y   24

TT_PCIE_LOG_SUBCMD_RELEASE

#define TT_PCIE_LOG_SUBCMD_RELEASE   2

TT_PCIE_LOG_SUBCMD_SETUP

#define TT_PCIE_LOG_SUBCMD_SETUP   1

TT_PCIE_LOG_TLB

#define TT_PCIE_LOG_TLB   11

Function Documentation

backend_dropped()

void backend_dropped ( const struct log_backend *const backend, uint32_t cnt )

static

Zephyr log backend dropped function - called when messages are dropped.

Parameters

backend	The backend instance
cnt	Number of dropped messages

backend_init()

void backend_init ( const struct log_backend *const backend )

static

Initialize the Zephyr log backend.

Parameters

backend

The backend instance

backend_panic()

void backend_panic ( const struct log_backend *const backend )

static

Zephyr log backend panic function - called when system panics.

Parameters

backend

The backend instance

backend_process()

void backend_process ( const struct log_backend *const backend, union log_msg_generic * msg )

static

Zephyr log backend process function - called for each individual log message.

Parameters

backend	The backend instance
msg	The log message to process

flush_buffer_to_host()

void flush_buffer_to_host ( void )

static

Flush accumulated framed messages to host.

flush_timer_callback()

void flush_timer_callback ( struct k_timer * timer )

static

Timer callback to submit flush work.

Parameters

timer

Timer object (unused)

flush_work_handler()

void flush_work_handler ( struct k_work * work )

static

Work handler to flush framed buffer to host.

Parameters

work	Work item (unused)

LOG_BACKEND_DEFINE()

LOG_BACKEND_DEFINE	(	backend_tt_pcie_log	,
		backend_api	,
		true	)

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	fw_tt_pcie_log_backend	,
		CONFIG_LOG_DEFAULT_LEVEL	)

LOG_OUTPUT_DEFINE()

LOG_OUTPUT_DEFINE	(	log_output_tt_pcie	,
		putc_in_frame	,
		buf	,
		1	)

putc_in_frame()

int putc_in_frame ( uint8_t * data, size_t length, void * ctx )

static

Character output function for Zephyr log formatting - writes directly to 4KB buffer.

Parameters

data	Data to append to framed log buffer
length	Length of data
ctx	Context (unused)

Returns

Length processed

REGISTER_MESSAGE()

REGISTER_MESSAGE	(	TT_SMC_MSG_TT_PCIE_LOG	,
		tt_pcie_log_handler	)

release_tt_pcie_log_backend()

uint8_t release_tt_pcie_log_backend ( void )

static

Release host tt_pcie_log and revert to local buffer only.

Returns

0 on success

SendPcieMsi()

void SendPcieMsi	(	uint8_t	x,
		uint8_t	y,
		uint32_t	vector_id )

setup_tt_pcie_log_backend()

uint8_t setup_tt_pcie_log_backend ( uint32_t buffer_addr_lo, uint32_t buffer_addr_hi, uint32_t buffer_size, uint8_t host_version )

static

Setup host tt_pcie_log by configuring NOC2AXI TLB and transferring local buffer.

Parameters

buffer_addr_lo	Lower 32 bits of host buffer IOVA
buffer_addr_hi	Upper 32 bits of host buffer IOVA
buffer_size	Size of buffer in bytes
host_version	Host version for tt_pcie_log protocol

Returns

0 on success, error code on failure

tt_pcie_log_handler()

uint8_t tt_pcie_log_handler ( const union request * request, struct response * response )

static

Handles the request to setup or release FW tt_pcie_log.

Parameters

[in]	request	The request, of type tt_pcie_log_rqst, with command code TT_SMC_MSG_TT_PCIE_LOG
[out]	response	The response to the host

Returns

0 for success, error code for failure

Variable Documentation

__packed

struct occp_execute_image_response __packed

backend_api

struct log_backend_api backend_api

static

Initial value:

= {
        .process = backend_process,
        .panic = backend_panic,
        .init = backend_init,
        .dropped = backend_dropped,
}

buf

char buf[1]

static

buffer_mutex

struct k_mutex buffer_mutex

static

flush_timer

struct k_timer flush_timer

static

flush_work

struct k_work flush_work

static

framed_buffer_pos

uint32_t framed_buffer_pos

static

framed_log_buffer

uint8_t framed_log_buffer[CONFIG_TT_PCIE_LOG_BACKEND_BUFFER_SIZE]

static

host_available

bool host_available

static

log_buffer_iova

uint64_t log_buffer_iova

static

log_buffer_size

uint32_t log_buffer_size

static

sequence_number

uint32_t sequence_number
