Test Infra

Test infra consists of main “tester” classes and a few helper ones. Its main goal is making test writing easy.

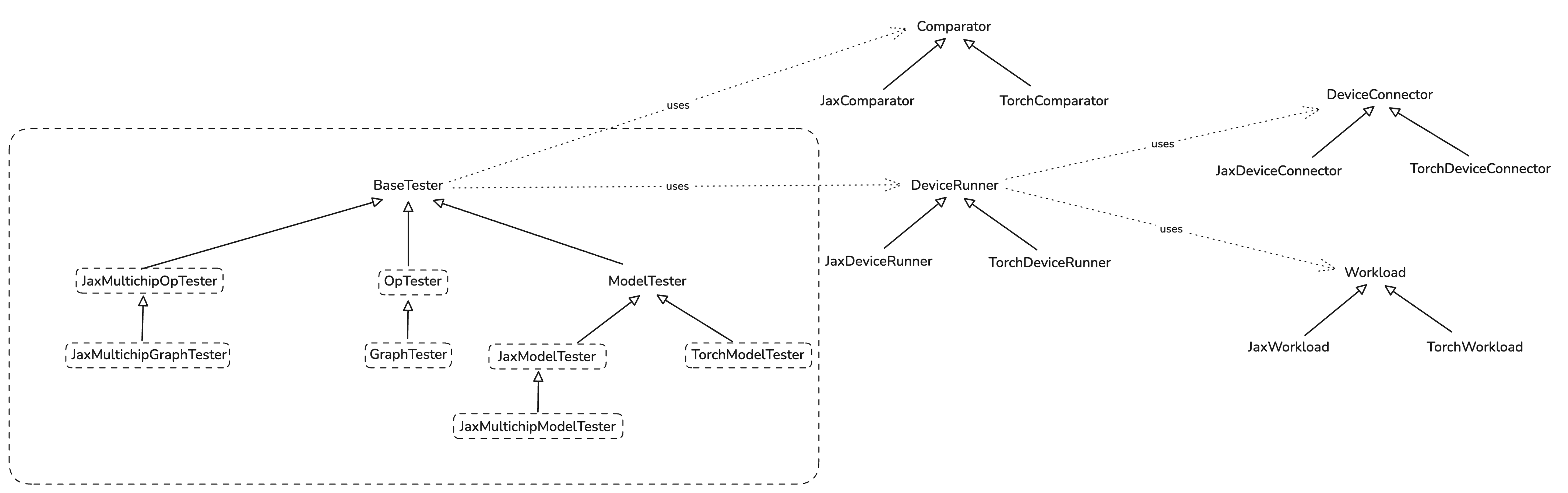

Here is a brief class diagram of the infra:

Op and Graph Tests

Op tester exposes easy to use functions:

run_op_test(...)
run_op_test_with_random_inputs(...)

They wrap the instantiation of the OpTester and all the underlying complexity. Users just need to pass the op (Python function) they want to test to one of these functions like this:

def test_add(x_shape: tuple, y_shape: tuple):
    def add(x: jax.Array, y: jax.Array) -> jax.Array:
        return jnp.add(x, y)

    run_op_test_with_random_inputs(add, [x_shape, y_shape])

That is all that is required.

GraphTester is currently identical to OpTester and also exposes

run_graph_test(...)
run_graph_test_with_random_inputs(...)

which are meant to be used in the same way as for op tests.

Model Tests

Test a model by inheriting one of the *ModelTester classes and overriding the required methods. Read the docstring of the appropriate class you want to inherit for more information.

JAX Model Example

First, you define a model:

class MNISTMLPModel(nn.Module):
    hidden_sizes: tuple[int]

    @nn.compact
    def __call__(self, x: jax.Array):
        x = x.reshape((x.shape[0], -1))

        for h in self.hidden_sizes:
            x = nn.Dense(features=h)(x)
            x = nn.relu(x)

        x = nn.Dense(features=10)(x)
        x = nn.softmax(x)

        return x

Then you define a tester by inheriting JaxModelTester:

class MNISTMLPTester(JaxModelTester):
    def __init__(
        self,
        hidden_sizes: Sequence[int],
        comparison_config: ComparisonConfig = ComparisonConfig(),
        run_mode: RunMode = RunMode.INFERENCE,
    ) -> None:
        self._hidden_sizes = hidden_sizes
        super().__init__(comparison_config, run_mode)

    # @override
    def _get_model(self) -> nn.Module:
        return MNISTMLPModel(self._hidden_sizes)

    # @override
    def _get_forward_method_name(self) -> str:
        return "apply"

    # @override
    def _get_input_activations(self) -> Sequence[jax.Array]:
        key = jax.random.PRNGKey(37)
        img = jax.random.normal(key, (4, 28, 28, 1))  # B, H, W, C
        # Channels is 1 as MNIST is in grayscale.
        return img

    # @override
    def _get_forward_method_args(self):
        inp = self._get_input_activations()
        parameters = self._model.init(jax.random.PRNGKey(42), inp)
        return [parameters, inp]

Finally, you run the test:

@pytest.fixture
def inference_tester(request) -> MNISTMLPTester:
    return MNISTMLPTester(request.param)

@pytest.mark.parametrize(
    "inference_tester", [(256, 128, 64)], indirect=True, ids=lambda val: f"{val}"
)
def test_mnist_mlp_inference(inference_tester: MNISTMLPTester):
    inference_tester.test()

Serialization and FileCheck

Serializing IR to Disk

To serialize compilation artifacts (MLIR, TTNN IRs) to disk, use the --serialize flag:

pytest path/to/test.py::test_name --serialize

Your test must pass the request fixture for serialization to work:

For op/graph tests:

def test_my_op(request):
    run_op_test(MyOp(), [torch.randn(32, 32)], request=request)

For model tests:

def test_my_model(model_tester: MyModelTester, request):
    model_tester.test(request=request)

Artifacts are written to output_artifact/<sanitized_test_name>/.

Running FileCheck

To verify IR transformations, use the @pytest.mark.filecheck decorator:

@pytest.mark.filecheck(["add.ttnn.mlir", "matmul_fusion.ttir.mlir"])
def test_my_op(request):
    run_op_test(MyOp(), [torch.randn(32, 32)], request=request)

FileCheck automatically serializes artifacts, runs pattern matching, and fails on mismatches.

For pattern file syntax and conventions, see tests/filecheck/filecheck.md.
