gddr.h File Reference

#include "gddr_telemetry_table.h"
#include "gddr_params.h"
#include <zephyr/sys_clock.h>

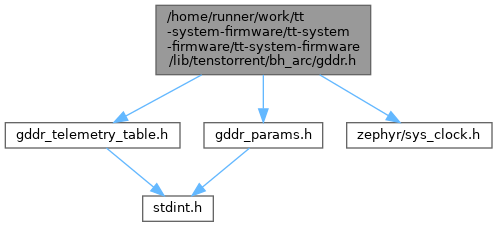

Include dependency graph for gddr.h:

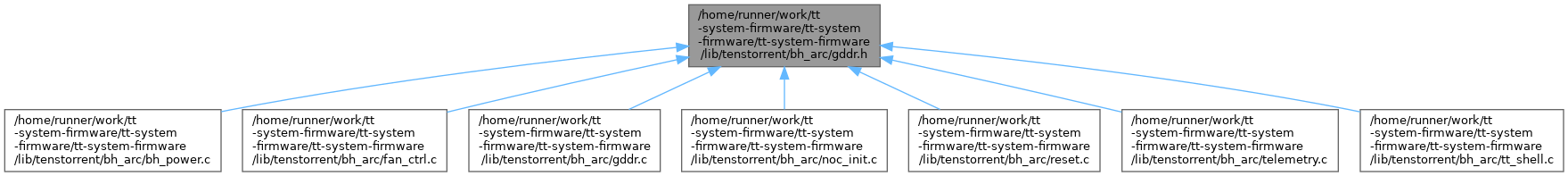

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	gddr_inst_temp
	Top and bottom DRAM die temperatures for a single GDDR instance (degrees Celsius). More...
struct	gddr_temps
	Per-instance GDDR die temperatures plus the max across all dies. More...
struct	gddr_bist_info
	BIST status bitmasks (one bit per GDDR instance). More...

Macros
#define	MIN_GDDR_SPEED   12000
#define	MAX_GDDR_SPEED   20000
#define	GDDR_SPEED_TO_MEMCLK_RATIO   16
#define	NUM_GDDR   8
#define	NUM_MRISC_NOC2AXI_PORT   3
#define	GDDR_TELEMETRY_TABLE_ADDR   0x8000
#define	GDDR_MSG_STRUCT_ADDR   0x6000
#define	RISC_CTRL_A_SCRATCH_0__REG_ADDR   0xFFB14010
#define	RISC_CTRL_A_SCRATCH_1__REG_ADDR   0xFFB14014
#define	RISC_CTRL_A_SCRATCH_2__REG_ADDR   0xFFB14018
#define	MRISC_INIT_STATUS   RISC_CTRL_A_SCRATCH_0__REG_ADDR
#define	MRISC_POST_CODE   RISC_CTRL_A_SCRATCH_1__REG_ADDR
#define	MRISC_MSG_REGISTER   RISC_CTRL_A_SCRATCH_2__REG_ADDR
#define	MRISC_INIT_FINISHED   0xdeadbeef
#define	MRISC_INIT_FAILED   0xfa11
#define	MRISC_INIT_BEFORE   0x11111111
#define	MRISC_INIT_STARTED   0x0
#define	MRISC_INIT_TIMEOUT   1000 /* In ms */
#define	MRISC_MEMTEST_TIMEOUT   1000 /* In ms */
#define	MRISC_POWER_SETTING_TIMEOUT_MS   1000
#define	MRISC_MSG_TYPE_NONE   0
	MRISC message type when no active message is signalled; acts as a completion signal from MRISC.
#define	MRISC_MSG_TYPE_PHY_POWERDOWN   1
	MRISC message to set the phy to power down state.
#define	MRISC_MSG_TYPE_PHY_WAKEUP   2
	MRISC message to set the phy to wake up state.
#define	MRISC_MSG_TYPE_RUN_MEMTEST   8
	MRISC message to run the memory test.

Functions
int	read_gddr_telemetry_table (uint8_t gddr_inst, gddr_telemetry_table_t *gddr_telemetry)
int	get_gddr_temps (struct gddr_temps *temps)
	Read the DRAM die temperatures for all enabled GDDR instances.
uint8_t	get_gddr_mrisc_noc2axi_port (uint8_t gddr_inst)
	Get the noc2axi port MRISC FW is loaded on for a GDDR instance.
struct gddr_bist_info	get_gddr_bist_info (void)
	Get GDDR BIST status.
int32_t	set_mrisc_power_setting (bool on)
	Sets the MRISC power setting for all active MRISCs.

Macro Definition Documentation

GDDR_MSG_STRUCT_ADDR

#define GDDR_MSG_STRUCT_ADDR   0x6000

GDDR_SPEED_TO_MEMCLK_RATIO

#define GDDR_SPEED_TO_MEMCLK_RATIO   16

GDDR_TELEMETRY_TABLE_ADDR

#define GDDR_TELEMETRY_TABLE_ADDR   0x8000

MAX_GDDR_SPEED

#define MAX_GDDR_SPEED   20000

MIN_GDDR_SPEED

#define MIN_GDDR_SPEED   12000

MRISC_INIT_BEFORE

#define MRISC_INIT_BEFORE   0x11111111

MRISC_INIT_FAILED

#define MRISC_INIT_FAILED   0xfa11

MRISC_INIT_FINISHED

#define MRISC_INIT_FINISHED   0xdeadbeef

MRISC_INIT_STARTED

#define MRISC_INIT_STARTED   0x0

MRISC_INIT_STATUS

#define MRISC_INIT_STATUS   RISC_CTRL_A_SCRATCH_0__REG_ADDR

MRISC_INIT_TIMEOUT

#define MRISC_INIT_TIMEOUT   1000 /* In ms */

MRISC_MEMTEST_TIMEOUT

#define MRISC_MEMTEST_TIMEOUT   1000 /* In ms */

MRISC_MSG_REGISTER

#define MRISC_MSG_REGISTER   RISC_CTRL_A_SCRATCH_2__REG_ADDR

MRISC_MSG_TYPE_NONE

#define MRISC_MSG_TYPE_NONE   0

MRISC message type when no active message is signalled; acts as a completion signal from MRISC.

MRISC_MSG_TYPE_PHY_POWERDOWN

#define MRISC_MSG_TYPE_PHY_POWERDOWN   1

MRISC message to set the phy to power down state.

MRISC_MSG_TYPE_PHY_WAKEUP

#define MRISC_MSG_TYPE_PHY_WAKEUP   2

MRISC message to set the phy to wake up state.

MRISC_MSG_TYPE_RUN_MEMTEST

#define MRISC_MSG_TYPE_RUN_MEMTEST   8

MRISC message to run the memory test.

MRISC_POST_CODE

#define MRISC_POST_CODE   RISC_CTRL_A_SCRATCH_1__REG_ADDR

MRISC_POWER_SETTING_TIMEOUT_MS

#define MRISC_POWER_SETTING_TIMEOUT_MS   1000

NUM_GDDR

#define NUM_GDDR   8

NUM_MRISC_NOC2AXI_PORT

#define NUM_MRISC_NOC2AXI_PORT   3

RISC_CTRL_A_SCRATCH_0__REG_ADDR

#define RISC_CTRL_A_SCRATCH_0__REG_ADDR   0xFFB14010

RISC_CTRL_A_SCRATCH_1__REG_ADDR

#define RISC_CTRL_A_SCRATCH_1__REG_ADDR   0xFFB14014

RISC_CTRL_A_SCRATCH_2__REG_ADDR

#define RISC_CTRL_A_SCRATCH_2__REG_ADDR   0xFFB14018

Function Documentation

get_gddr_bist_info()

struct gddr_bist_info get_gddr_bist_info

(

void

)

Get GDDR BIST status.

Returns

Per-instance bitmasks indicating which instances have completed BIST and which have failed.

get_gddr_mrisc_noc2axi_port()

uint8_t get_gddr_mrisc_noc2axi_port

(

uint8_t

gddr_inst

)

Get the noc2axi port MRISC FW is loaded on for a GDDR instance.

Parameters

[in]

gddr_inst

GDDR controller instance (0 - NUM_GDDR - 1).

Returns

noc2axi port index (0, 1 or 2).

get_gddr_temps()

int get_gddr_temps

(

struct gddr_temps *

temps

)

Read the DRAM die temperatures for all enabled GDDR instances.

Disabled instances are left zeroed. Reads that fail are logged and skipped, leaving the corresponding entry zeroed while the remaining instances are still read.

Parameters

[out]

temps

Destination struct. Fully overwritten on entry.

Returns

0 if all enabled instances were read successfully. If one or more reads failed, the last error code encountered is returned (the rest are still read).

read_gddr_telemetry_table()

int read_gddr_telemetry_table	(	uint8_t	gddr_inst,
		gddr_telemetry_table_t *	gddr_telemetry )

set_mrisc_power_setting()

int32_t set_mrisc_power_setting

(

bool

on

)

Sets the MRISC power setting for all active MRISCs.

Parameters

[in]

on

true to send MRISCs the MRISC_MSG_TYPE_PHY_WAKEUP command false to send MRISCs the MRISC_MSG_TYPE_PHY_POWERDOWN command

Returns

0 on success. Negative error code on failure.
